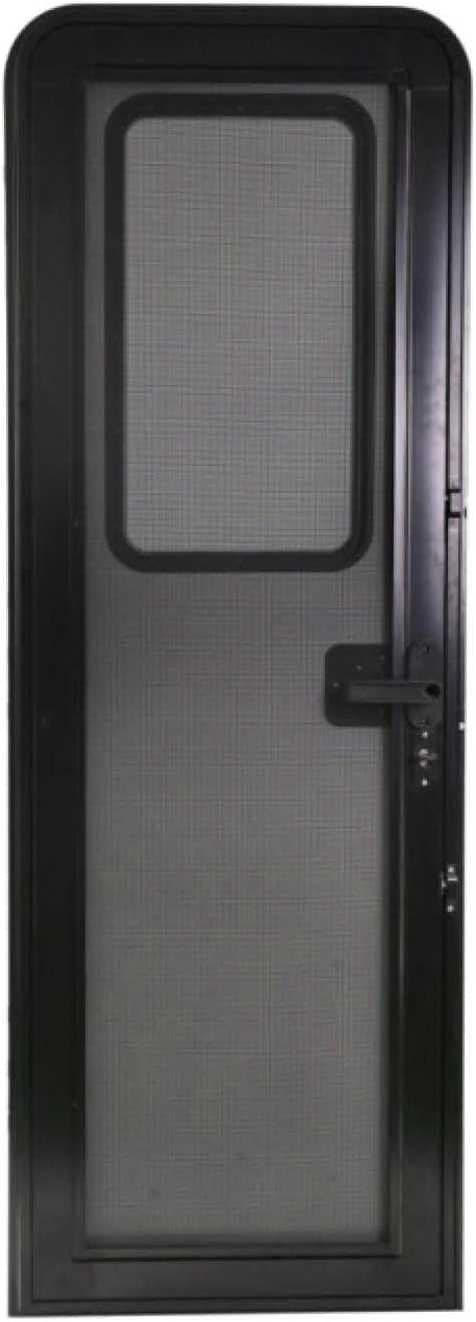

MG16RD – RV Door With Card System
Add this accessory to your RV procurement plan. Discuss the right specification, fit and order quantity with our team.
For dealers, importers and RV businesses. Product suitability and supply details are confirmed at enquiry.Product overview
RV Door with Access Card combined keys and access card system to provide two ways to open the door, our Rv entry door is a more fashion and convenient choice for the camping life.
Product details
- Main material: High tensile aluminum alloy
- Anti-UV aluminum sandwich panel
- Double glazing acrylic glass or tempered glass door window (with 3C or ECE)
- Stainless steel screen door
- Color: Door Frame: white(standard), black, silver gray
- Door Panel: white outer panel, white inner panel
- Glass: transparent gray
- Screen door: black or white
- Door lock: black
- Optional Accessory: door stopper, decorative rubber trim, air vent, card machine
- Fitting: 30-40mm(install rubber trim for >40mm)
- Features:
- Combined mechanical lock and card system
- Two ways for opening
- Effective access time can be set by the card system–
- Customized sizes are available
Functions
Open, close, lock, ventilate,allow sunlight in, prevent insects.With good sound-proof, heat- insulation,water¬proof performance.
Applications
Travel trailer parked in camping ground.
Specifications
| Ser | Ordering Size
(WXH.mm) |
Overall Size
(WXH.mm) |
| 1 | 622X1822 | 652X1852 |
| 2 | 620X1800 | 650X1830 |
| 3 | 620X1850 | 650X1880 |
| 4 | 610X1800 | 640X1830 |
| 5 | 620X1750 | 650X1780 |
| 6 | 620X1700 | 650X1730 |
| 7 | 650X1800 | 680X1830 |
| 8 | 760X1908 | 790X1938 |
Review dimensions and installation requirements with your team before ordering. On a small screen, swipe the table to see all columns.
