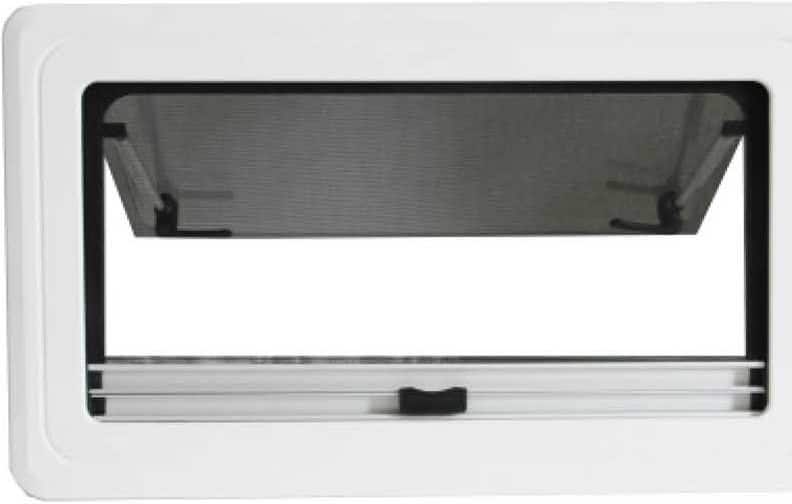

The windows are made of high quality aluminum alloy with a black powder-coated finish. There is a positive locking latch for security, and the ventilating panel is screened to let air in and keep bugs out.

  • Type: top-hung window, side window
  • Main Material:
    • Aluminum orASAouterframe
    • ABS inner frame
    • Double glazing anti-UV acrylic glass
  • Maximum opening angle: 70 degree
  • Fitting:
    • Adjustable, 25-35mm (standard)
    • Other thickness can be made as customers’ requests.
  • Color:
    • Outer frame: black(standard), white
    • silver gray
    • Inner frame:white
    • Glass: transparent gray
  • Features:
    • Simple and quick clapping installation can save the installation time
    • Without screw holes on the inner frame surface
    • Variety sizes for choosing
    • Easy to open and close, can set into several positions

Open, close, ventilate, insulate, provide privacy, allow sunlight in, prevent insects, and good water seal. It can act as an emergency exit when the screen and blind are unlocked and the window open.

Caravan, motorhome, travel trailer, modified car etc

Ser Ordering Size

(WXH.mm)

Cut Hole Size

(WXH.mm)

Overall Size

(WXH.mm)

Cut Hole Corner Radius(Aluminum Outer Frame) Net Weighl (KG)
1 350X280 350X280 380X310 4-R7 2.80
2 500X300 500X300 530X330 4-R7 3.80
3 300X500 300X500 330X530 4-R7 3.80
4 500X350 500X350 530X380 4-R7 4.04
5 350X500 350X500 380X530 4-R7 4.04
6 500X450 500X450 530X480 4-R7 4.68
7 450X500 450X500 480X530 4-R7 4.68
8 500X500 500X500 530X530 4-R7 5.10
9 600X600 600X600 630X630 4-R7 6.10
10 700X400 700X400 730X430 4-R7 5.56
11 700X800 700X800 730X830 4-R7 8.48
12 800X500 800X500 830X530 4-R7 6.92
13 900X450 900X450 930X480 4-R7 7.16
14 900X500 900X500 930X530 4-R7 7.66
15 900X550 900X550 930X580 4-R7 8.10
16 900X900 900X900 930X930 4-R7 11.02
17 1000X500 1000X500 1030X530 4-R7 8.26
18 1000X600 1000X600 1030X630 4-R7 9.20
19 1000X800 1000X800 1030X830 4-R7 11.14
20 1100X450 1100X450 1130X480 4-R7 8.60
21 1100X550 1100X550 1130X580 4-R7 9.58
22 1200X350 1200X350 1230X380 4-R7 7.00
23 1200X500 1200X500 1230X530 4-R7 9.80
24 1200X700 1200X700 1230X730 4-R7 11.50
25 1450X550 1450X550 1480X580 4-R7 11.72
he cut hole for ASA outer frame is 4-R15.
