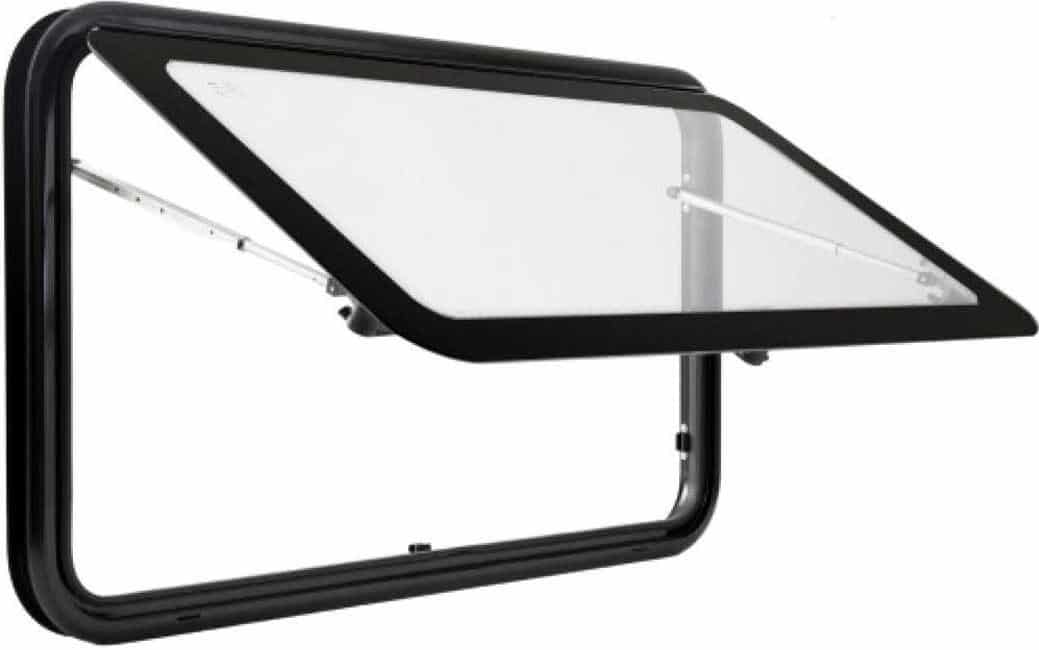

MG17RW – RV Round Corner Window
Add this accessory to your RV procurement plan. Discuss the right specification, fit and order quantity with our team.
For dealers, importers and RV businesses. Product suitability and supply details are confirmed at enquiry.Product overview
The windows are made of high quality aluminum alloy with a black powder-coated finish. There is a positive locking latch for security, and the ventilating panel is screened to let air in and keep bugs out.
Product details
- Model: MG 17RW-AG(double glazing acrylic glass);MG 17RW-TG(Flat Tempered Glass)
- Type: top-hung window, side window
- Main Material:
- aluminum outer frame ; ABS inner frame
- Double glazing acrylic glass;Or tempered glass
- Color:
- outer frame: black, white, silver gray
- Inner frame: white or beige
- Glass: transparent gray
- Maximum Opening Angle: 70°
- Installation Method: with separate installation frame
- Fitting: adjustable,25-35mm, 32-42mm
- (standard window) Other thickness can be customized as customer’s request
- Features:
- *Easy for installation
- Outer frame and inner frames are assembled separately
- Two type glass and two type support rod for choosing
- Variety standard sizes for choosing
- Customized sizes can be made.
Functions
Open, close, ventilate, insulate, provide privacy, allow sunlight in, prevent insects, and good water seal. It can act as an emergency exit when the screen and blind are unlocked and the window open.
Applications
Caravan, trailer, modified vehicle, special vehicle etc.
Specifications
| Ser | Ordering Siz (WXH.mm) | Cut Hole Size (WXH.mm) | Overall Size
(WXH.mm) |
Cut Hole Corner Radius | Net Weight (KG) |
| 1 | 500X300 | 500X300 | 530X330 | 4-R70 | 3.4 |
| 2 | 300X500 | 300X500 | 330X530 | 4-R70 | 3.4 |
| 3 | 500X350 | 500X350 | 530X380 | 4-R70 | 3.8 |
| 4 | 350X500 | 350X500 | 380X530 | 4-R70 | 3.8 |
| 5 | 500X450 | 500X450 | 530X480 | 4.R70 | 4.4 |
| 6 | 450X500 | 450X500 | 480X530 | 4-R70 | 4.4 |
| 7 | 500X500 | 500X500 | 530X530 | 4-R70 | 4.7 |
| 8 | 610X450 | 610X450 | 640X480 | 4-R70 | 4.6 |
| 9 | 600X600 | 600X600 | 630X630 | 4-R70 | 4.9 |
| 10 | 700X300 | 700X300 | 730X330 | 4-R70 | 4.4 |
| 11 | 700X400 | 700X400 | 730X430 | 4-R70 | 5.3 |
| 12 | 700X500 | 700X500 | 730X530 | 4-R70 | 5.7 |
| 13 | 700X550 | 700X550 | 730X580 | 4-R70 | 6.1 |
| 14 | 800X400 | 800X400 | 830X430 | 4-R70 | 5.8 |
| 15 | 800X500 | 800X500 | 830X530 | 4-R70 | 6.6 |
| 16 | 900X450 | 900X450 | 930X480 | 4-R70 | 6.5 |
| 17 | 900X500 | 900X500 | 930X530 | 4-R70 | 7.5 |
| 18 | 900X550 | 900X550 | 930X580 | 4-R70 | 8.5 |
| 19 | 900X900 | 900X900 | 930X930 | 4-R70 | 10.8 |
| 20 | 1000X500 | 1000X500 | 1030X530 | 4-R70 | 8.0 |
| 21 | 1000X600 | 1000X600 | 1030X630 | 4-R70 | 8.8 |
| 22 | 1000X800 | 1000X800 | 1030X830 | 4-R70 | 10.9 |
| 23 | 1100X450 | 1100X450 | 1130X480 | 4-R70 | 8.3 |
| 24 | 1100X550 | 1100X550 | 1130X580 | 4-R70 | 9.2 |
| 25 | 1200X350 | 1200X350 | 1230X380 | 4-R70 | 7.3 |
| 26 | 1200X500 | 1200X500 | 1230X530 | 4-R70 | 9.3 |
| 27 | 1450X550 | 1450X550 | 1480X580 | 4-R70 | 10.9 |
| Other customized sizes can be made after discussion. | |||||
Review dimensions and installation requirements with your team before ordering. On a small screen, swipe the table to see all columns.
