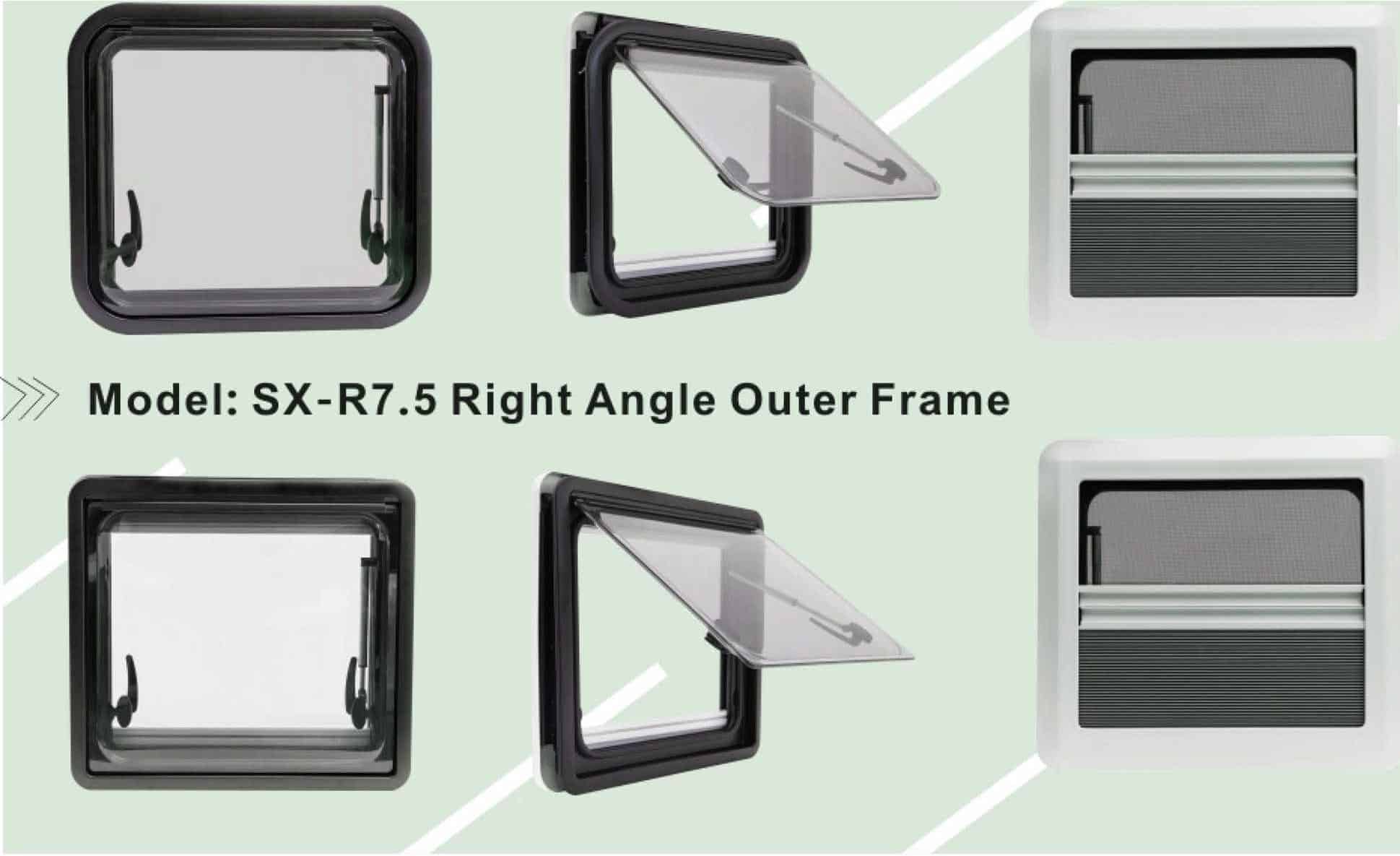

SX-R70/SX-R7.5 – RV WINDOW
Add this accessory to your RV procurement plan. Discuss the right specification, fit and order quantity with our team.
For dealers, importers and RV businesses. Product suitability and supply details are confirmed at enquiry.Product overview
This latest innovative-designed RV side window for 2019 is with ECE certificate. Its superior reinforced outer frame material can meet various outdoor environments. Integrated inner frame with invisible screen and pleated shade makes the whole set window more luxury. It adapts the updated patent for fast and easy installation structures which can save time for installation.
Product details
- Type: top-hung window, side window
- Main Material: Reinforced plastic outer frame；ABS inner frame ; Double-glazed acrylic glass
Stainless steel support rod - Color: Outer frame: black(standard)/other colors can be customized Inner frame: white(with
black screen and dark gray sun shade) - Glass: transparent gray
- Fitting: Adjustable, 28-40mm ; Other thickness can be made as customers’ requests
- Features:
-
- Integrated molding type frames without holes； simple and luxury
- Easy and quick clapping installation method can save installation time
- Optional position type support rod can stopped in any position needed
- Reinforced outer frame material can meet different outdoor environments
- Invisible type screen and pleated sun shade
Functions
Open, close, ventilate, insulate, provide privacy, allow sunlight in, prevent insects, and good water seal. It can act as an emergency exit when the screen and blind are unlocked and the window open.
Applications
Motorhome, caravan, trailer etc
Specifications
| Ser | Ordering Size (WXH,mm) | Cut Hole Size (WXH , mm) | Overall Size (WXH , mm) | SX-R70 Cut Hole
Corner Radius |
SX-R7.5CutHole Corner Radius |
| 1 | 500X350 | 500X350 | 542X392 | 4-R7.5 | 4-R70 |
| 2 | 500X450 | 500X450 | 542X492 | 4-R7.5 | 4-R70 |
| 3 | 500X500 | 500X500 | 542X542 | 4-R7.5 | 4-R70 |
| 4 | 600X600 | 600X600 | 642X642 | 4-R7.5 | 4-R70 |
| 5 | 700X300 | 700X300 | 742X342 | 4-R7.5 | 4-R70 |
| 6 | 700X400 | 700X400 | 742X442 | 4-R7.5 | 4-R70 |
| 7 | 700X600 | 700X600 | 742X642 | 4-R7.5 | 4-R70 |
| 8 | 700X800 | 700X800 | 742X842 | 4-R7.5 | 4-R70 |
| 9 | 900X450 | 900X450 | 942X492 | 4-R7.5 | 4-R70 |
| 10 | 900X500 | 900X500 | 942X542 | 4-R7.5 | 4・R70 |
| 11 | 900X550 | 900X550 | 942X592 | 4-R7.5 | 4-R70 |
| 12 | 900X600 | 900X600 | 942X642 | 4-R7.5 | 4-R70 |
| 13 | 900X950 | 900X950 | 942X992 | 4-R7.5 | 4-R70 |
| 14 | 1000X500 | 1000X500 | 1042X542 | 4-R7.5 | 4-R70 |
| 15 | 1000X600 | 1000X600 | 1042X642 | 4-R7.5 | 4-R70 |
| 16 | 1000X800 | 1000X800 | 1042X842 | 4-R7.5 | 4-R70 |
| 17 | 1100X450 | 1100X450 | 1142X492 | 4-R7.5 | 4-R70 |
| 18 | 1100X550 | 1100X550 | 1142X592 | 4-R7.5 | 4-R70 |
| 19 | 1200X350 | 1200X350 | 1242X392 | 4-R7.5 | 4-R70 |
| 20 | 1200X500 | 1200X500 | 1242X542 | 4-R7.5 | 4-R70 |
| 21 | 1300X600 | 1300X600 | 1342X642 | 4-R7.5 | 4-R70 |
| 22 | 1450X550 | 1450X550 | 1492X592 | 4-R7.5 | 4-R70 |
Review dimensions and installation requirements with your team before ordering. On a small screen, swipe the table to see all columns.
