  • Truck Camper

Cabover Camper-172

Model information for dealers, importers and wholesale buyers.

Request a dealer quote View specifications

Model Overview

We offer transparent and competitive pricing tailored to the project scope, order volume, and specific requirements. Our pricing structure is clear, with no hidden costs, ensuring clients receive maximum value while maintaining high standards of quality and service.

Key Specifications

3 Bed

Length
4140mm
Width
2200mm
Height
2360mm
Tare Mass
800KG
Cabover Camper-172
Brochure

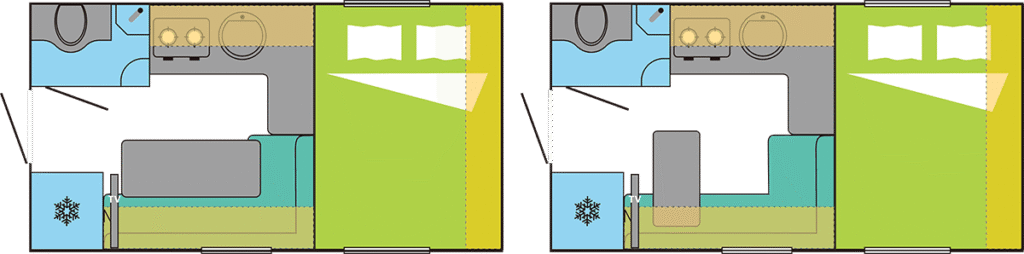

Floor Plan

This camper efficiently divides the space into separate zones for the bathroom, kitchen, and sleeping areas, offering privacy and convenience. The layout optimizes functionality with practical storage and easy access to essential amenities, making it ideal for comfortable and compact living.

Request Floor Plan

360° Factory Tour

Take a 360° virtual tour of our state-of-the-art factory! Explore our workshops, product interiors, and showroom, and get an aerial view of the entire facility. Discover the craftsmanship behind our products and easily share or contact us for more information.

Specifications

Interior

Interior dimensions: 4000(L)*2084(W)*2002(H) mm
Floor structure: Honeycomb floor
Bed: 1 (1330 * 2080mm)
Rotatable dining table

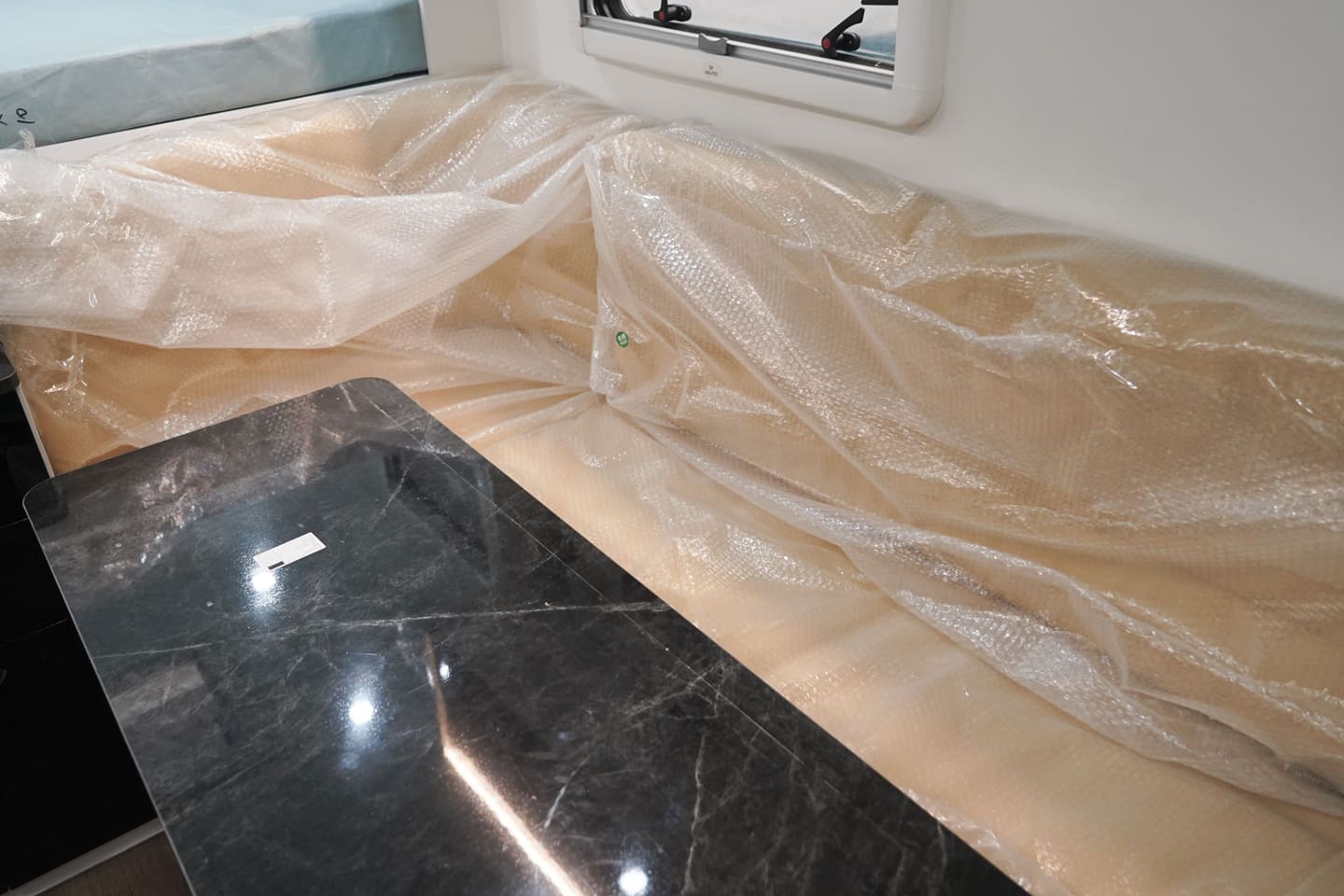

L-shaped sofa (4-seater)
Bathroom mirror

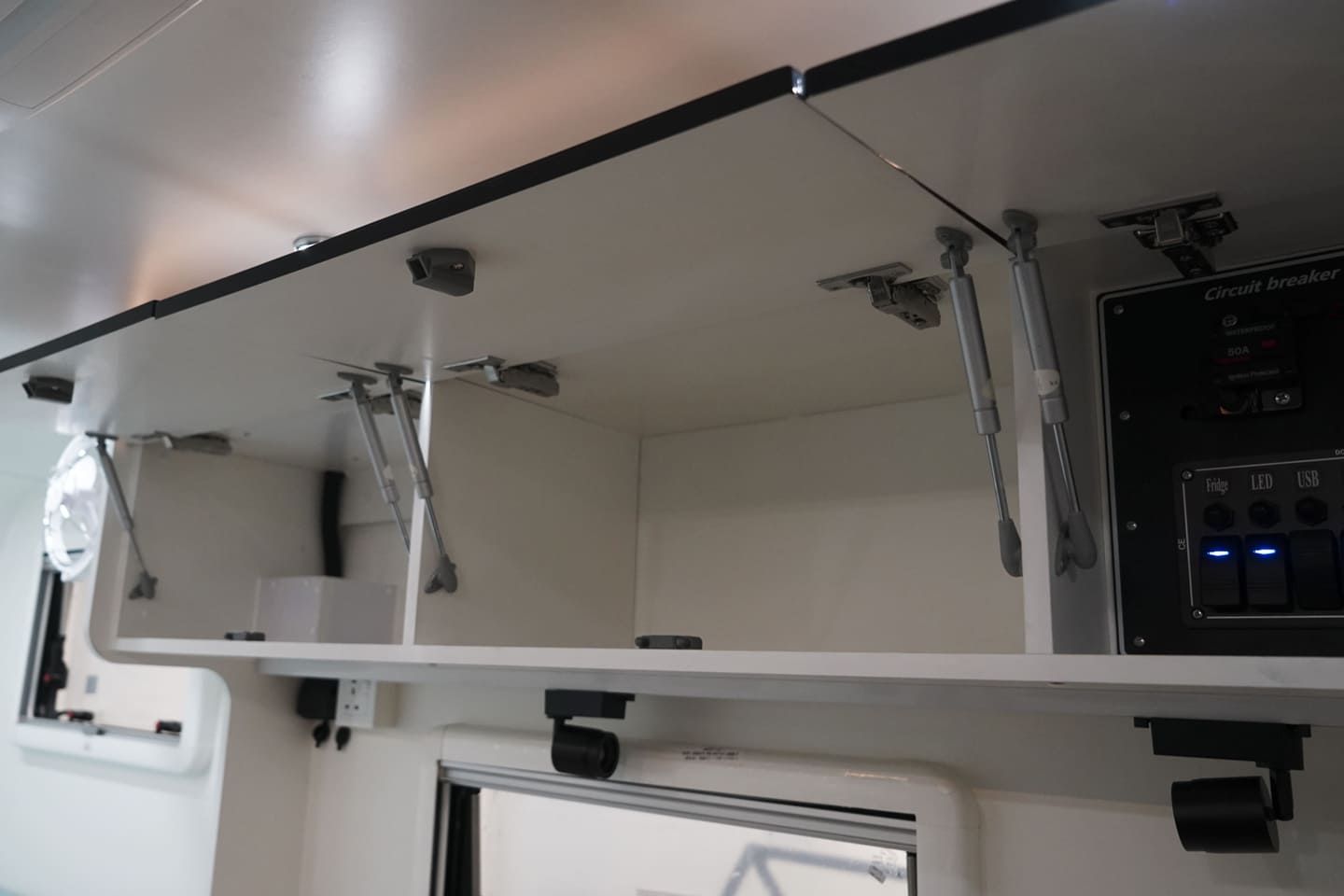

LED interior lighting
12V electric jacks*4
Foldable ladder
Fire extinguisher: 1

Exterior

Body dimensions: 4095(L)*2156(W)*2490(H) mm
Gas cylinder bracket*1 (excludes gas bottle & regulator)
Full copper gas piping system
Front vehicle connector: 7-pin European round plug
50A European plug (confirm voltage/style)
Tail lights: 2 turn signals, 4 brake lights, 2 reverse lights, 2 running lights, 2 marker lights (E4 certified)
License plate light: 1 (E4 certified)
Side marker lights: 6 (E4 certified)
Reflective panels
Exterior 240V socket (European standard)
Solar panels: 12V, 100W*2
LED lights on right exterior (2 units)

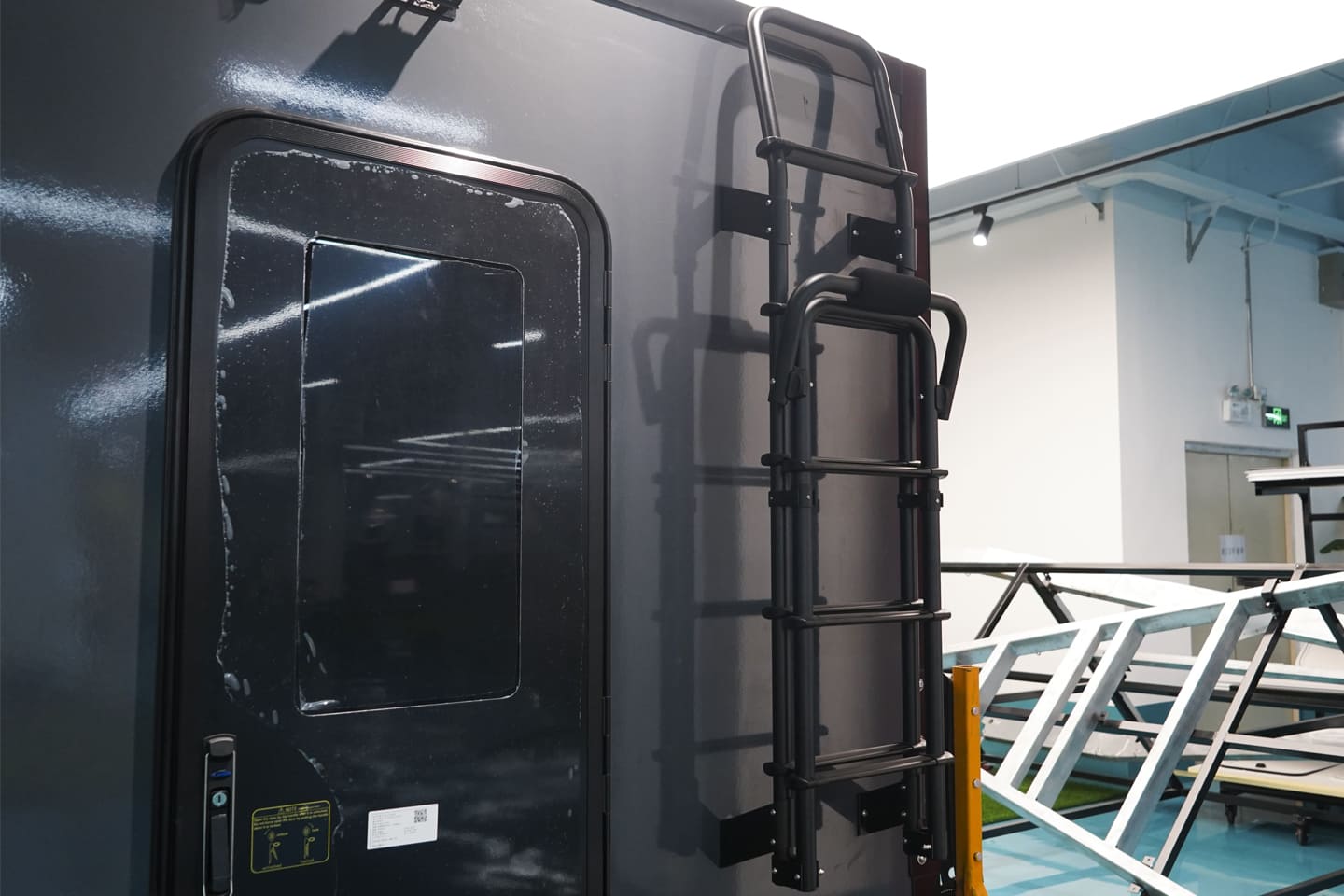

Rear ladder (for roof access)
Brake light protectors

Plumbing

Fresh water tank: 100L
Gray water tank: 54L
Water heater: Truma 14L electric/gas combo
Water pump: 12V pump, flow rate 11.3LPM

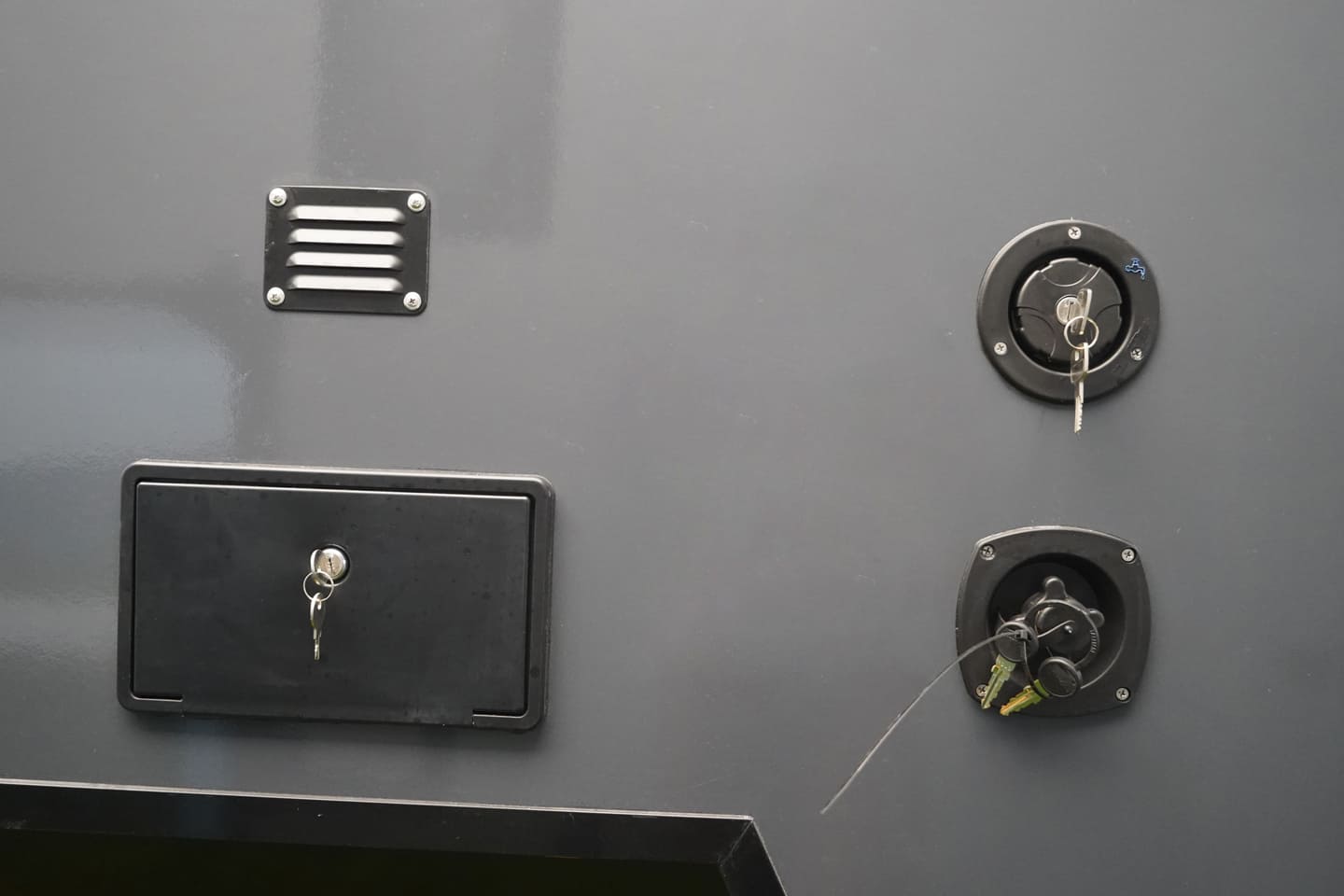

Gravity water inlet
Pressure-reducing water inlet

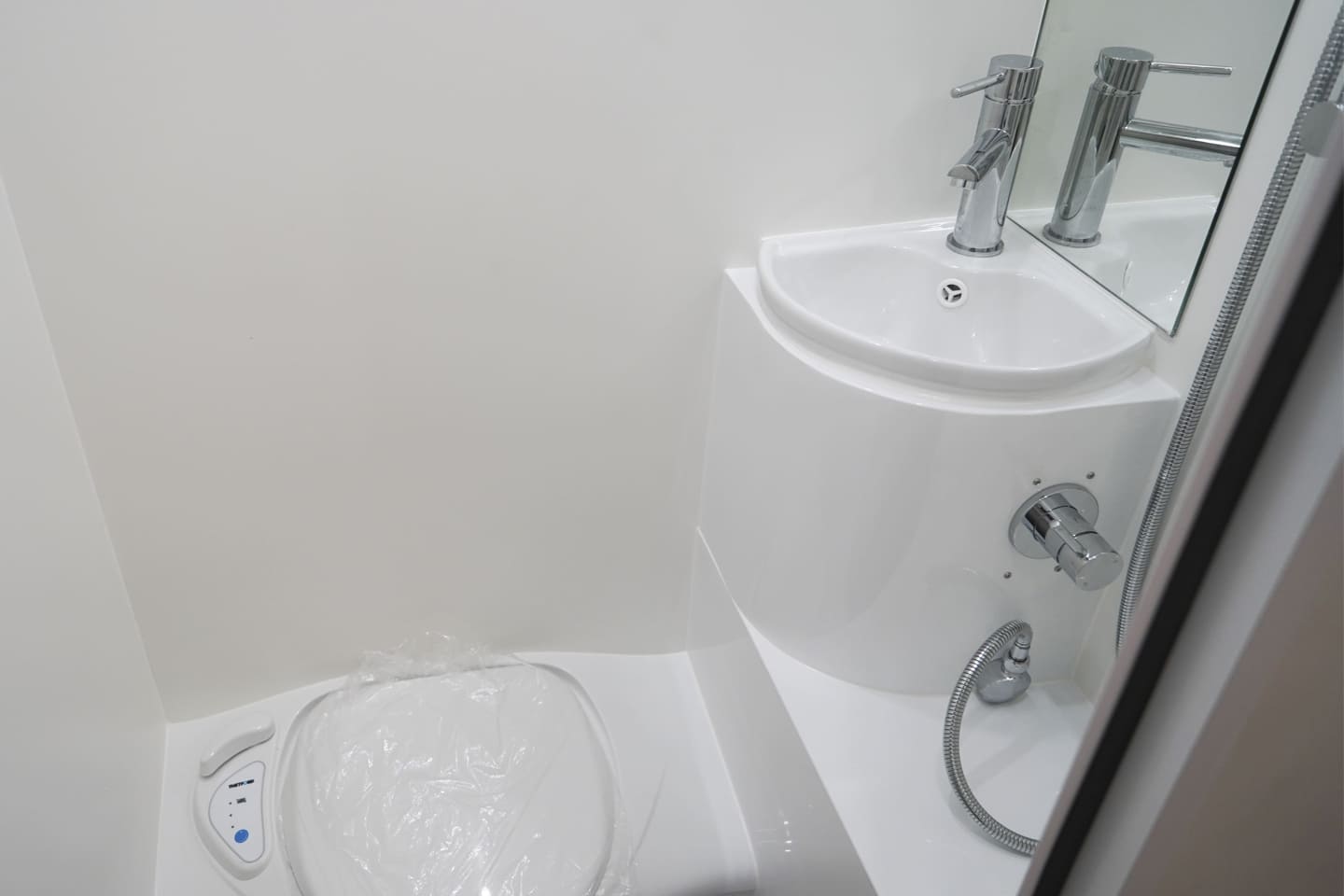

Wet/dry combo bathroom
Adjustable-height showerhead (Water Mark certified)
Sink faucet: hot & cold (Water Mark certified)

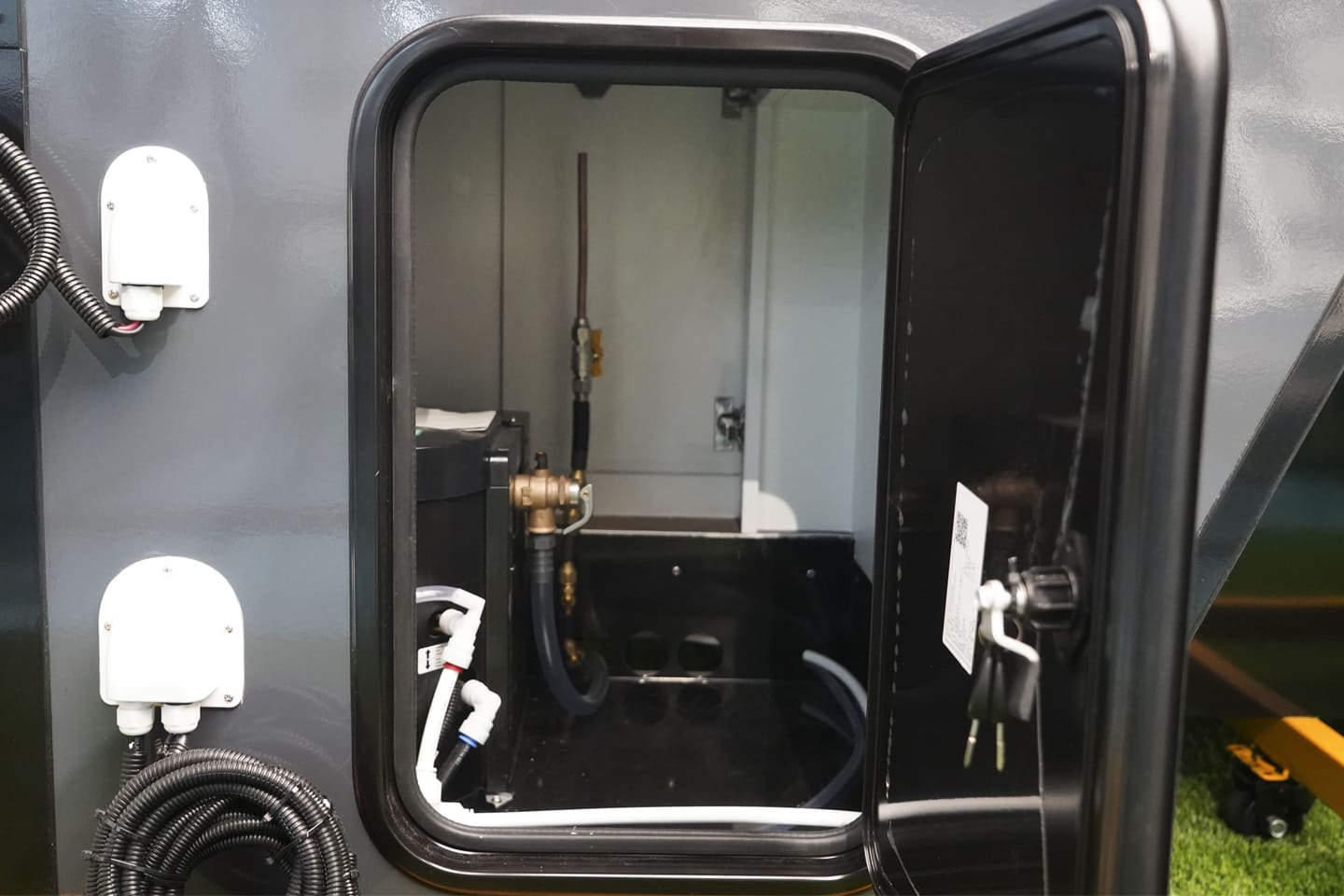

External shower box (cold/hot water)

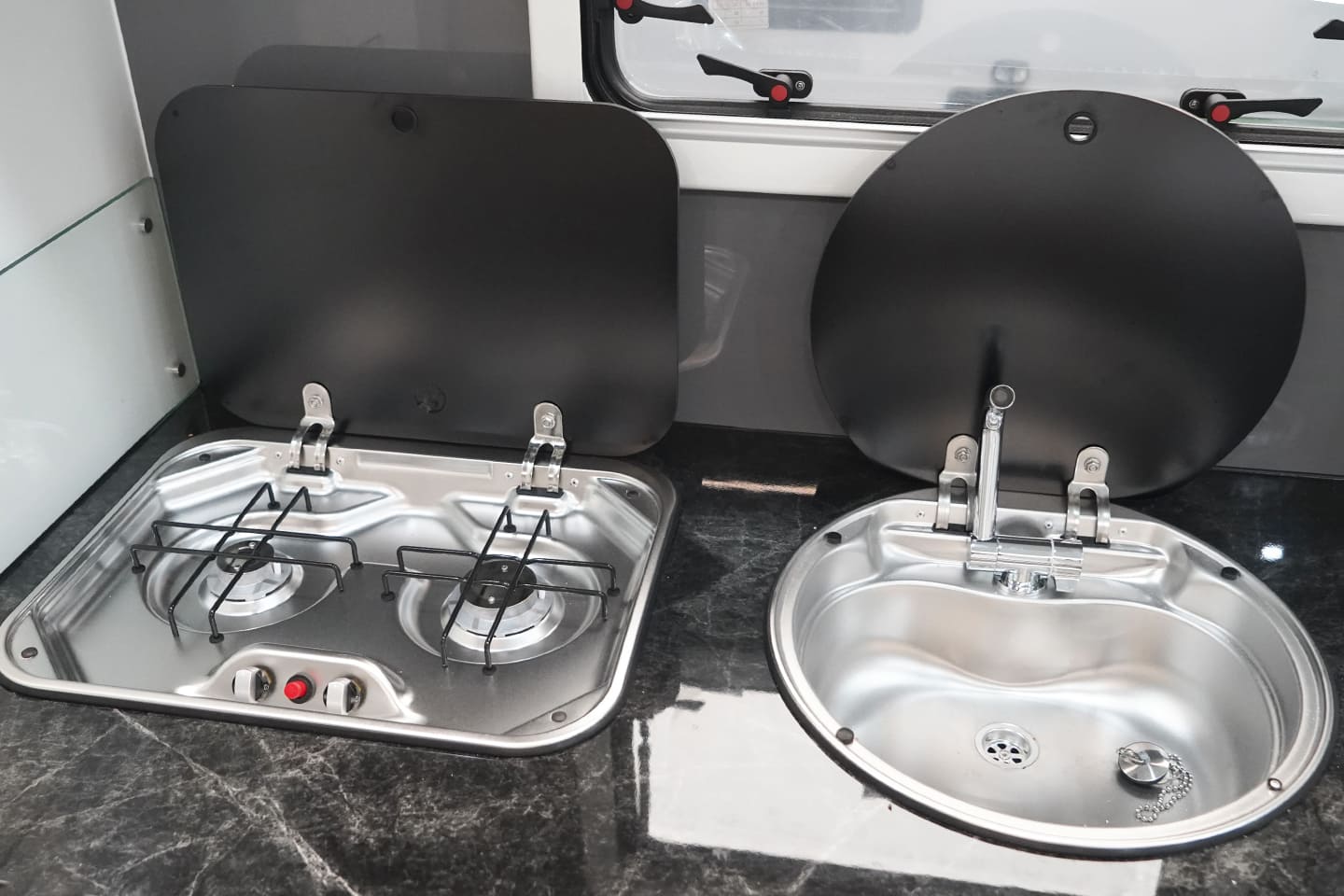

Covered sink basin

Applainces

​​Exterior colors​​:
RAL7001 Silver Gray*1 unit
RAL9016 Gloss White*1 unit (Fiberglass)
​​Interior colors​​:
Matte White (Fiberglass)
PVC flooring: HW-7021G
Sofa: Gray (YJ767-7)*1 unit, Blue (YJ789-20)*1 unit
Countertop: RAL9016 Gloss White*1 unit, Black Cloud Stone (33476A)*1 unit
Cabinetry: Matte White (solid wood core)
Cabinet doors: VM-4030A-6HG-01 Silver (MDF)
Door colors: Full White1 unit, Full Black1 unit
​​Optional​​:
Awning: 2500(L)*2000(W) mm (manual, standard colors)
TV bracket
24″ 12V TV
Digital TV antenna
Entrance step ladder

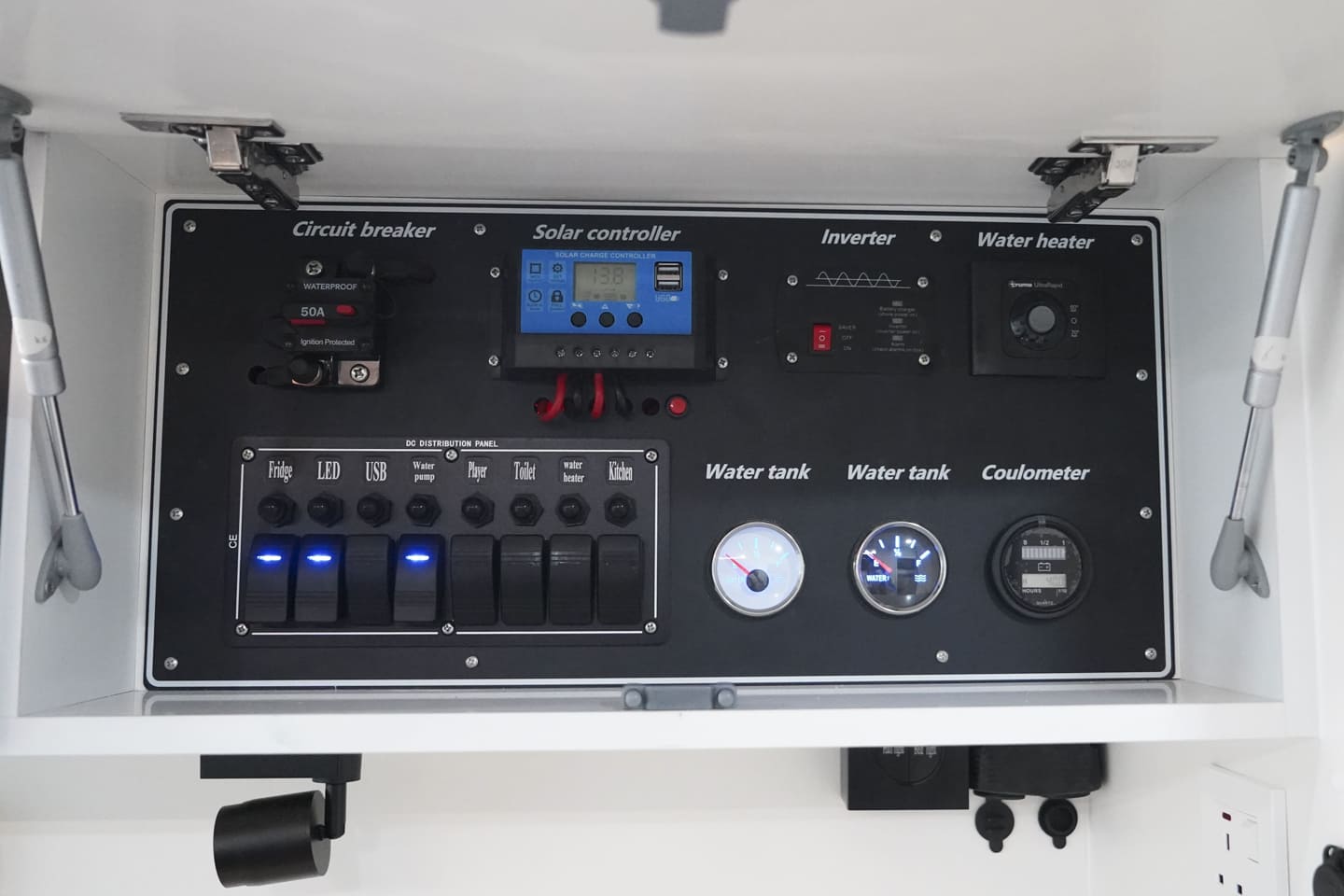

Electrical

Battery: Maintenance-free 12V 150AH
Inverter: 12V→240V, 2000W sine wave with 0-60A charging
Solar controller: 20A
Power display: Digital battery meter
Water level indicators: Fresh/gray tanks
External power inlet: 220-240V 15A
15m charging cable
240V circuit breaker
12V circuit breaker (automotive-grade)
Interior 240V outlets: 5
Interior 12V outlets: USB + cigarette lighter
MP5 player
Interior speakers*2
FM radio antenna
Dometic rooftop AC
Bathroom exhaust fan
700 * 500mm skylight with light

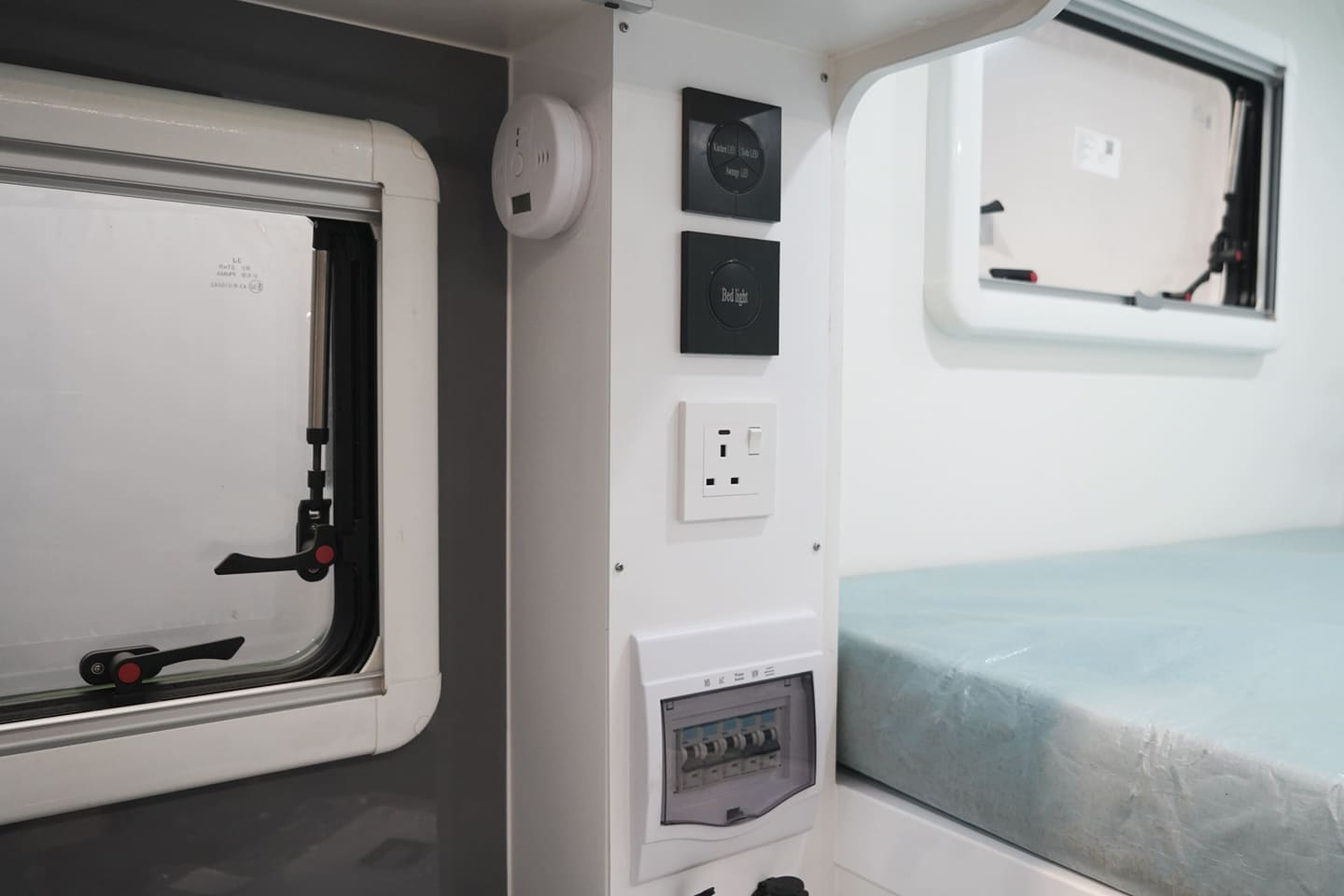

CO detector
Smoke alarm

Advantages

Factory Overview

Review the Ecocampor workshop as part of your supplier evaluation. Discuss the model configuration, inspection points and production plan before placing a wholesale order.

Explore Our Factory

You May Also Like

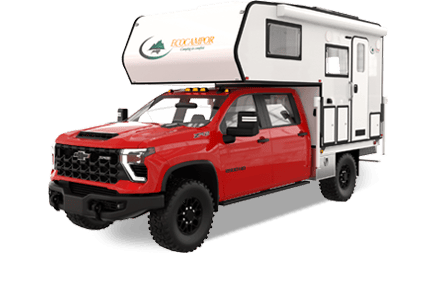

Cabover Camper-236

Sleeps

3 Bed

Length
4542mm
Width
2200mm
Height
2168mm
Tare Mass
1150KG
Product details
Request more info

Cabover Camper-189

Sleeps

3 Bed

Length
3300mm
Width
2200mm
Height
2255.5mm
Tare Mass
800KG
Product details
Request more info

Overland Camper-420

Sleeps

2 Bed

Length
4200mm
Width
2200mm
Height
2081mm
Tare Mass
1730KG
Product details
Request more info

Build your next dealer range.

Compare models, request product information and discuss the configuration your market needs.
Request Dealer Catalogue
For dealers, importers & wholesalers

Let’s discuss your product range.

Tell us which model you are sourcing and where you plan to sell it. Share your estimated quantity and requirements so our team can prepare a relevant response.

  • Model specifications and equipment
  • Dealer and wholesale quotations
  • Branding, packing and delivery requirements

Prefer email?
tom@ecocampor.com

Dealer enquiry

Frequently Asked Questions

What dimensions are published for this model?
The current listing for Cabover Camper-172 gives Length: 4140mm; Width: 2200mm; Height: 2360mm. Use these figures for initial range comparison. Request the approved dimensional drawing and confirm the measurement basis, fitted equipment and transport dimensions before finalising your dealer specification.
What pickup information is needed to confirm compatibility?
For Cabover Camper-172, provide the exact pickup make, model year, cab and bed or tray dimensions. Ask for the mounting layout and centre-of-gravity information for the quoted configuration. Your dealership should check the complete loaded combination against the truck manufacturer’s payload and axle limits before promising a fit to customers.
How should we use the listed weight in purchasing decisions?
The published tare mass for Cabover Camper-172 is 800KG. Tare mass should not be treated as the ready-to-travel weight. Ask what the stated figure includes and allow for optional equipment, water, luggage and other loads when reviewing vehicle matching, handling and transport.
Which interior features are listed for this product?
The current interior list includes: Interior dimensions: 4000(L)*2084(W)*2002(H) mm; Floor structure: Honeycomb floor; Bed: 1 (1330 * 2080mm). Check the complete Specifications & Equipment section for Cabover Camper-172 and request an itemised quotation distinguishing the standard configuration from any requested options.
What information is needed for a wholesale quotation?
Send your company name, destination market, estimated quantity and the Cabover Camper-172 configuration you want to source. Include your required equipment, branding brief and target purchasing schedule. Ask for the order terms, minimum quantity and production timing to be confirmed for your enquiry; these should not be assumed from a generic product listing.
How should we request private-label or configuration changes?
Prepare a clear brief for Cabover Camper-172 with your artwork, preferred finishes, equipment changes and any market-specific requirements. Ask the factory to confirm technical feasibility, the revised specification and the effect on weight, cost and order timing before placing a private-label order.
Which documents should our dealership review before ordering?
Request the relevant dimensional drawings, equipment list, installation or operating information and available component details for the quoted Cabover Camper-172. Confirm the scope and current validity of any certificates or approvals with your destination-market adviser; a factory credential is not blanket approval for every vehicle or market.
How can we plan packing, delivery and after-sales requirements?
Include your delivery destination and expected order quantity in the enquiry. Request the proposed packing and loading arrangement for Cabover Camper-172 and agree the shipment schedule in writing. Review the applicable warranty terms, parts information and service responsibilities before committing to your dealer stock plan.
