Cabover Camper-236
Model information for dealers, importers and wholesale buyers.
Model Overview

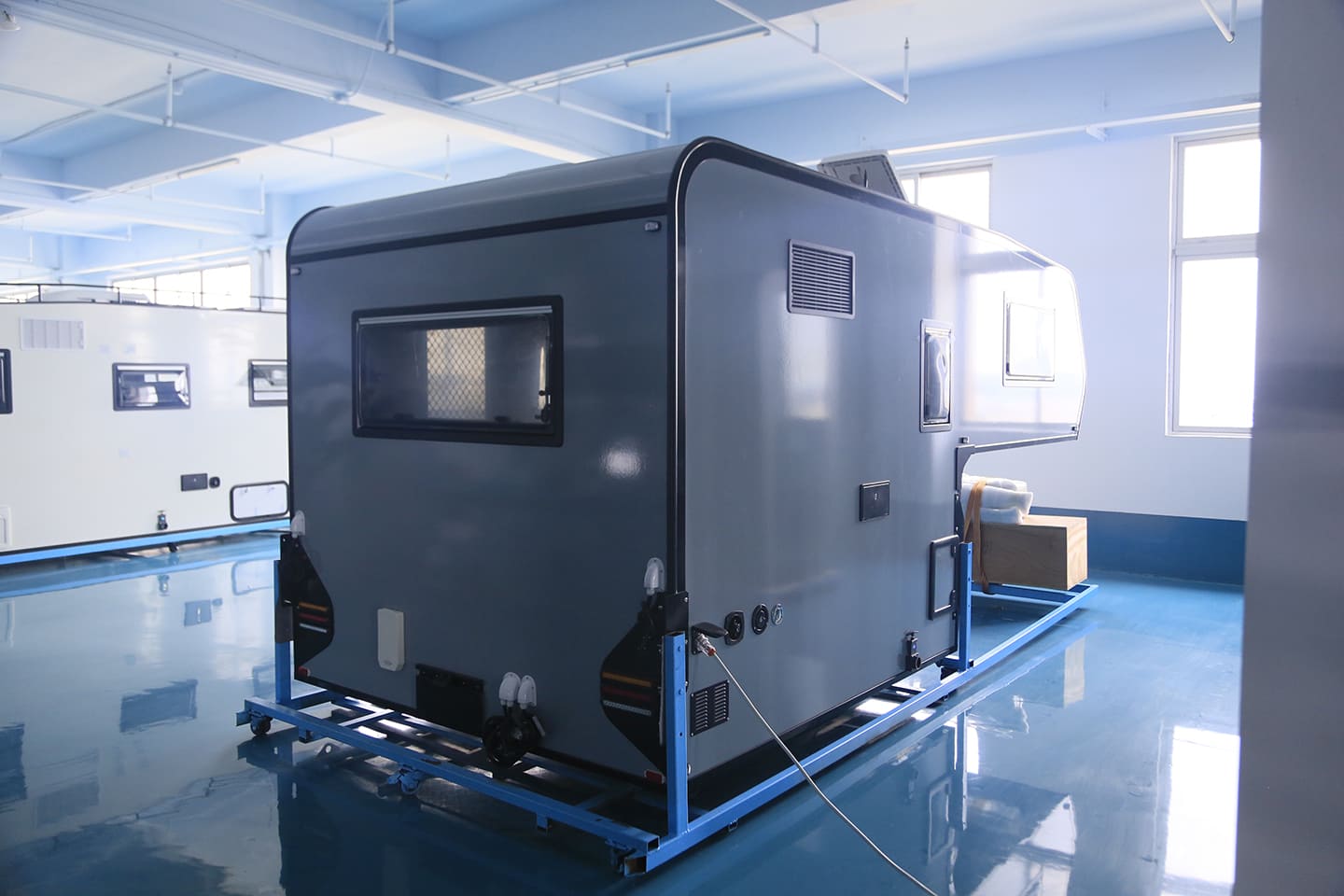

Pro-236 is a cabover truck camper with a catalogue sleeping capacity of 3. The camper body measures 4542 × 2200 × 2168 mm. Catalogue 0114, PDF page 34, lists a tare mass of 1150 kg; confirm the fitted equipment and weight basis for your order.
A reference configuration lists a 150 L fresh-water tank, a 72 L waste-water tank and two 150 W solar panels. Confirm the battery, appliances and electrical system for your destination market. Share the intended truck model, year, bed dimensions and payload rating so the loaded weight, centre of gravity and mounting arrangement can be checked.
Key Specifications
Sleeps 3
360° Factory Tour
Take a 360° virtual tour of our state-of-the-art factory! Explore our workshops, product interiors, and showroom, and get an aerial view of the entire facility. Discover the craftsmanship behind our products and easily share or contact us for more information.
Specifications
Sleeping configuration:

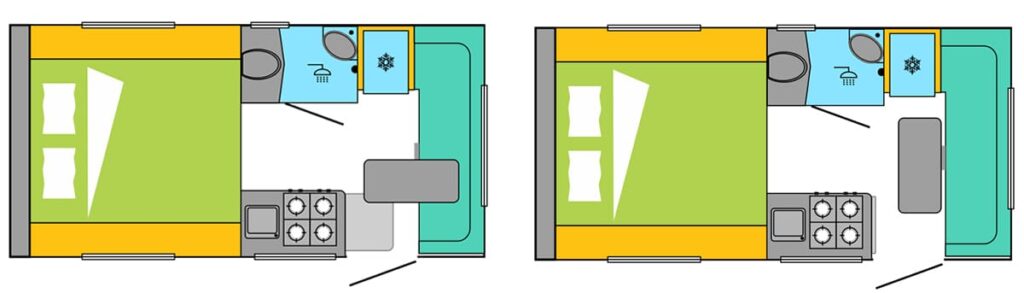

Sleeps 3 people; includes one queen-size bed. Confirm the sleeping layout for your selected configuration.
Batteries:
Maintenance free battery, 12V120AH
Floor:
Plastic honeycomb board + PVC floor glue
Lights: LED Light
Equipment:
Two interior speakers and two exterior waterproof speakers
Material:
FRP + aluminum frame + XPS
Tow:

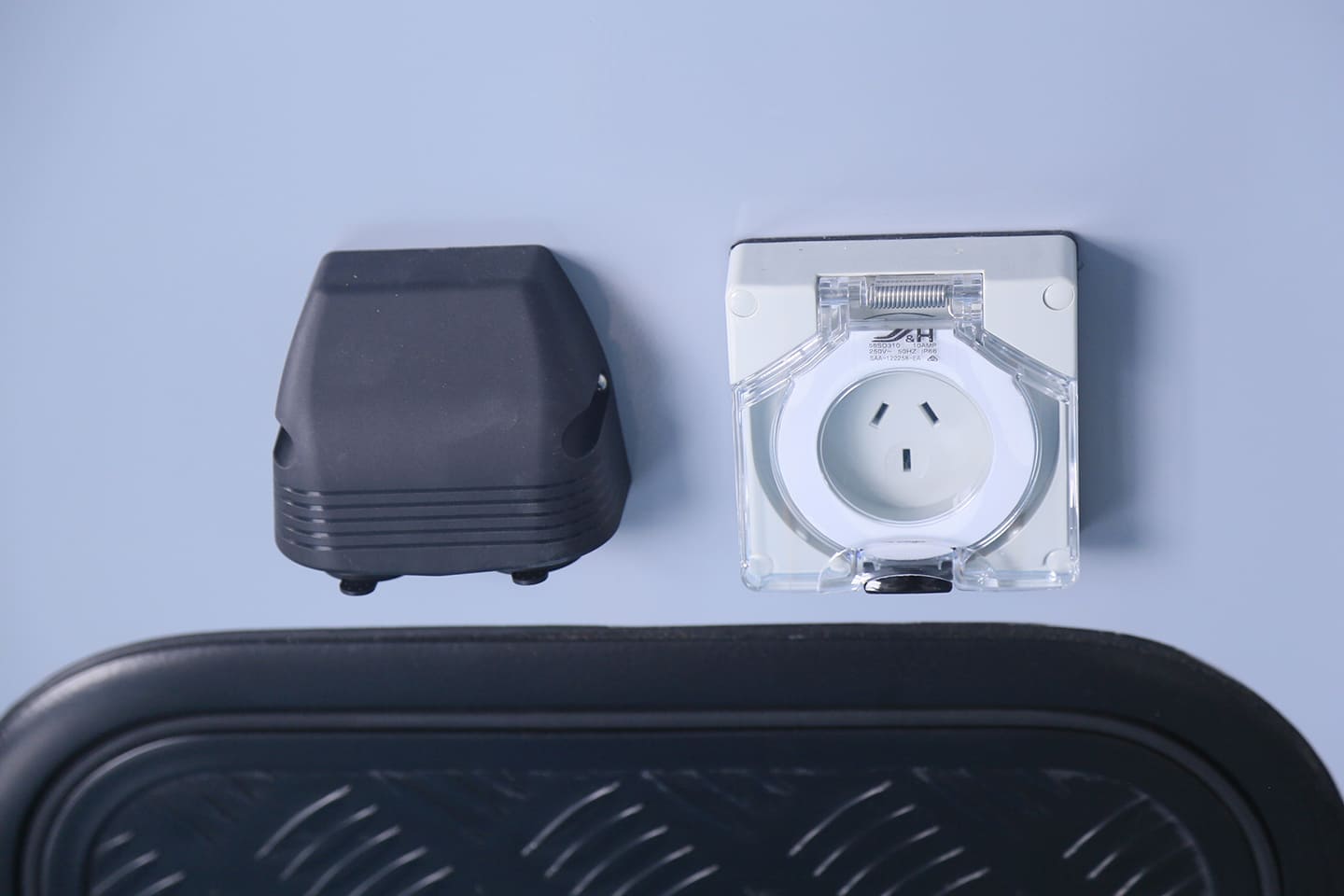

Front car joint+50A Anderson plug
Light:
Tail light + licence plate number + side light+ reflector
Shower:

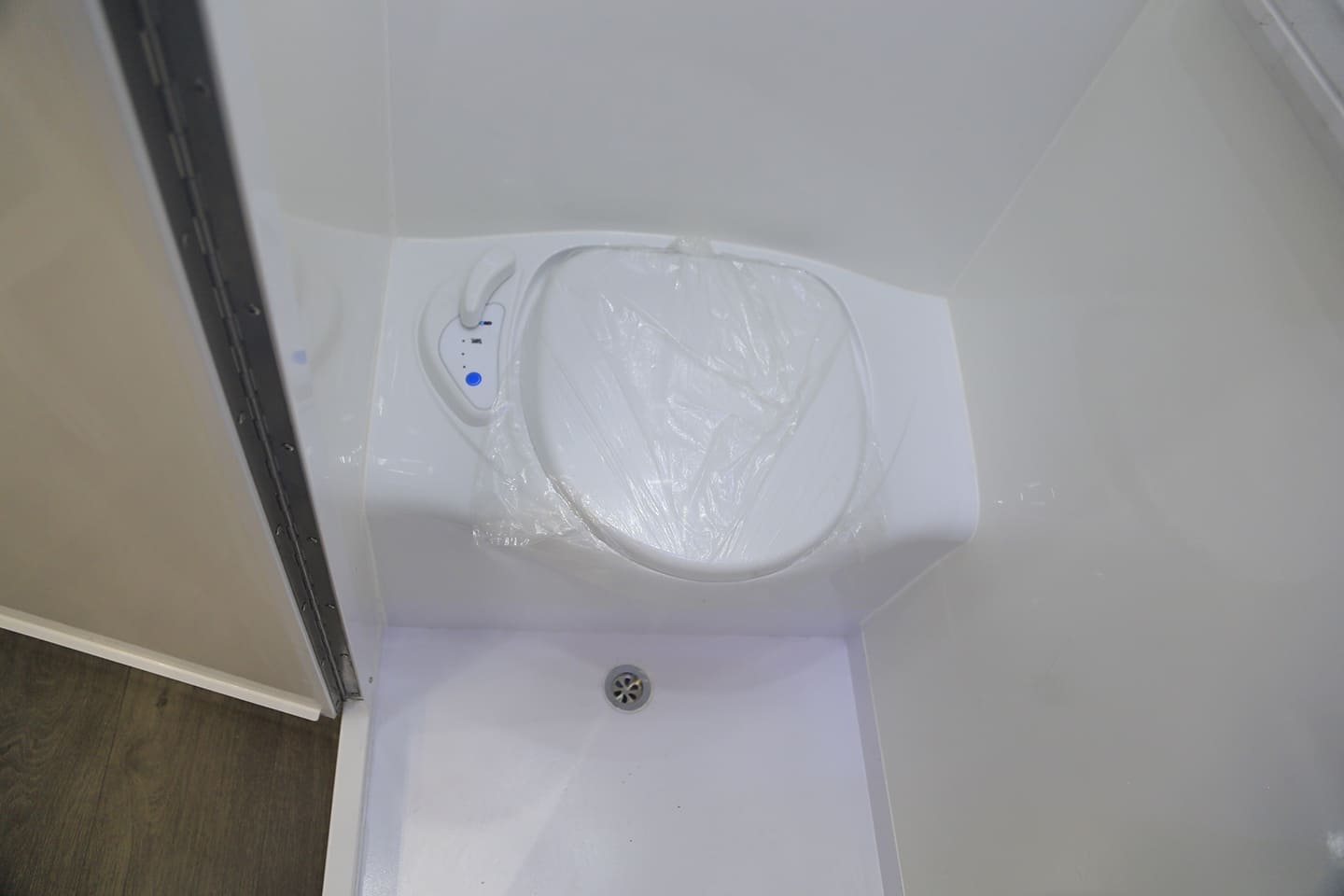

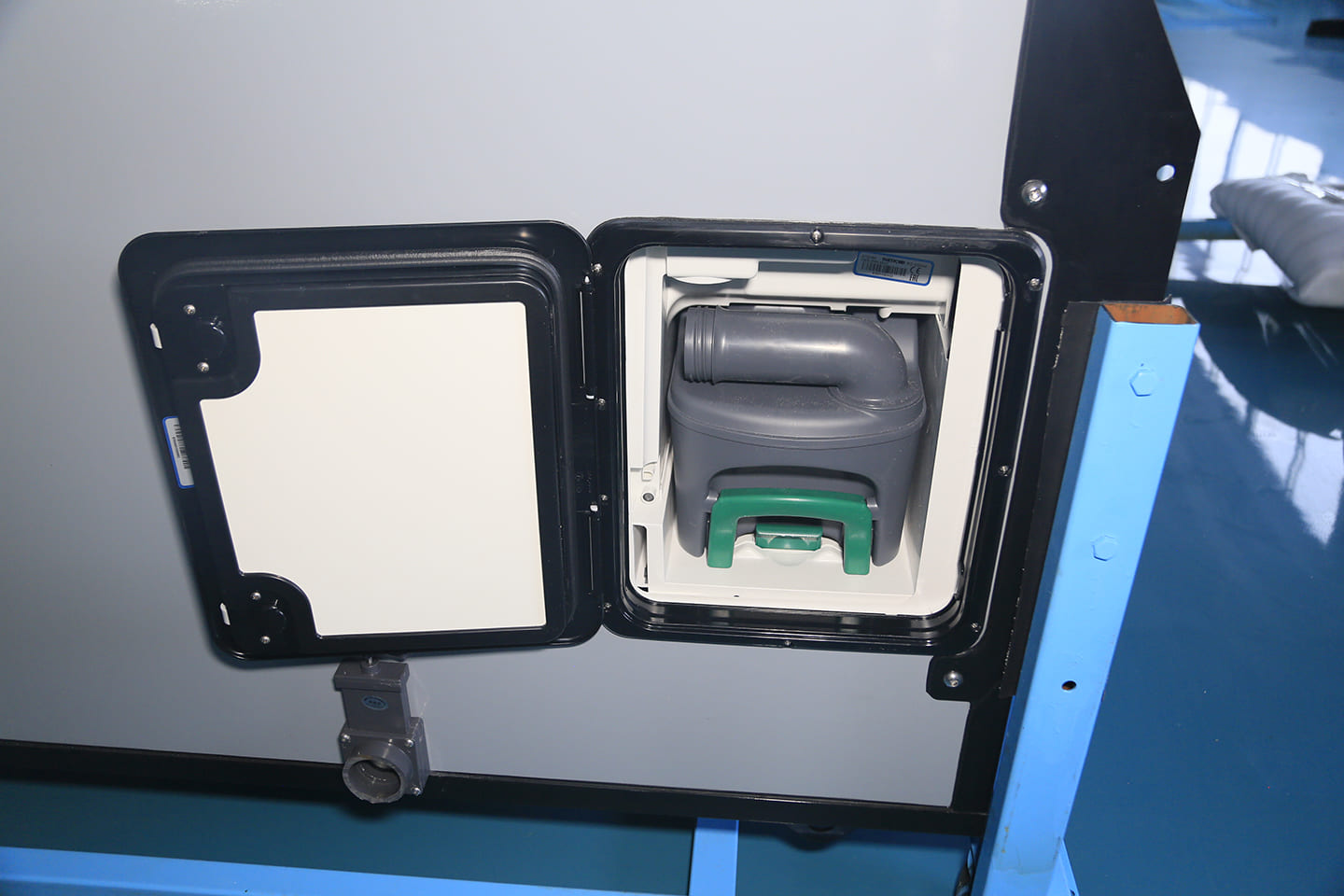

14L Water heater, interior shower, and Thetford toilet.
Sink:
Large Interior Stainless Steel Sink
Water Tanks
150L clean water tanks and one 72L sewage tank
Solar controller:
20A solar controller and two 150W solar panels
Equipment:

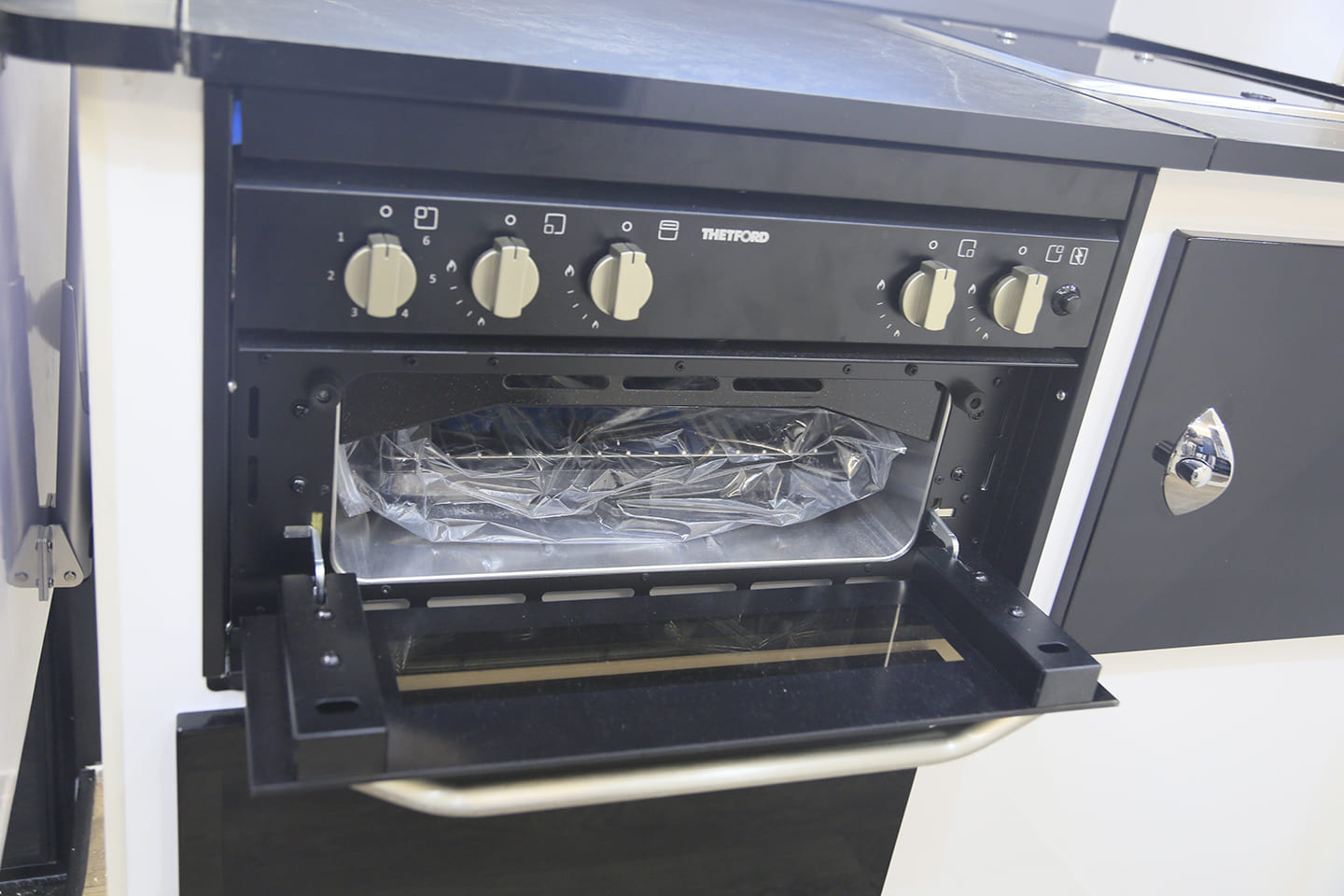

Equipped with two audio, FM radio antennas, MP3 player, Thetford 152L Fridge, 4 burner stoves with oven, Microwave, Range hood, Dometic AC
Gas pipe:
All copper gas pipe system with two 5kg gas bottle racks.
Helpful technical guides
Advantages
Factory Overview
Review the Ecocampor workshop as part of your supplier evaluation. Discuss the model configuration, inspection points and production plan before placing a wholesale order.

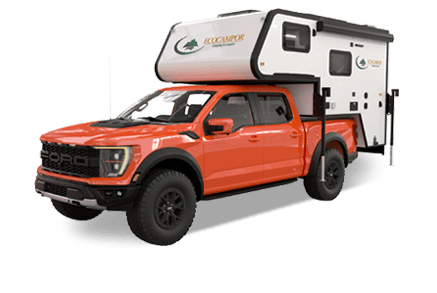

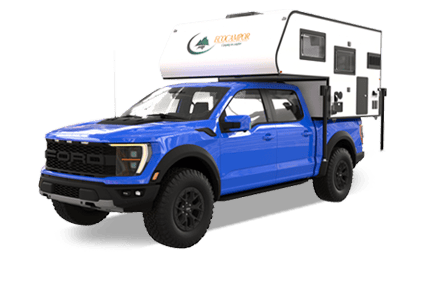

You May Also Like
Sleeping capacity
3 people
- Body length
- 4,140 mm
- Width
- 2,200 mm
- Tare mass
- 800 kg
Sleeping capacity
3 people
- Body length
- 3,300 mm
- Width
- 2,200 mm
- Tare mass
- 800 kg
Sleeping capacity
4 people
- Body length
- 4,200 mm
- Width
- 2,200 mm
- Tare mass
- 1,730 kg
Build your next dealer range.
Let’s discuss your product range.
Tell us which model you are sourcing and where you plan to sell it. Share your estimated quantity and requirements so our team can prepare a relevant response.
- Model specifications and equipment
- Dealer and wholesale quotations
- Branding, packing and delivery requirements
Prefer email?
tom@ecocampor.com
Frequently Asked Questions
Which dimensions should I use to compare this model?
Catalogue 0114 lists 4542 × 2200 × 2168 mm for Camper body only. Compare models using the same measurement basis. Confirm the final dimensional drawing, accessories and transport dimensions with Ecocampor.
How should I assess vehicle compatibility and loading?
Tare mass is not fully loaded operating weight. Confirm water, equipment, luggage, occupants where applicable, permitted mass limits, axle loads and the intended tow vehicle or truck before ordering.
Which specification and equipment will be supplied?
Use the catalogue figures for initial selection. The final quotation and approved specification define the equipment, dimensions, weight ratings and destination-market requirements for your configuration.
Can I discuss dealer, OEM or ODM cooperation?
Yes. Share your target market, preferred model and expected order plan. Dealer requirements, investment, initial orders, service capability and territory arrangements are assessed for each market. OEM and ODM projects can be discussed with Ecocampor.
