- Truck Camper
Pop Up Camper-163
Model information for dealers, importers and wholesale buyers.
Model Overview

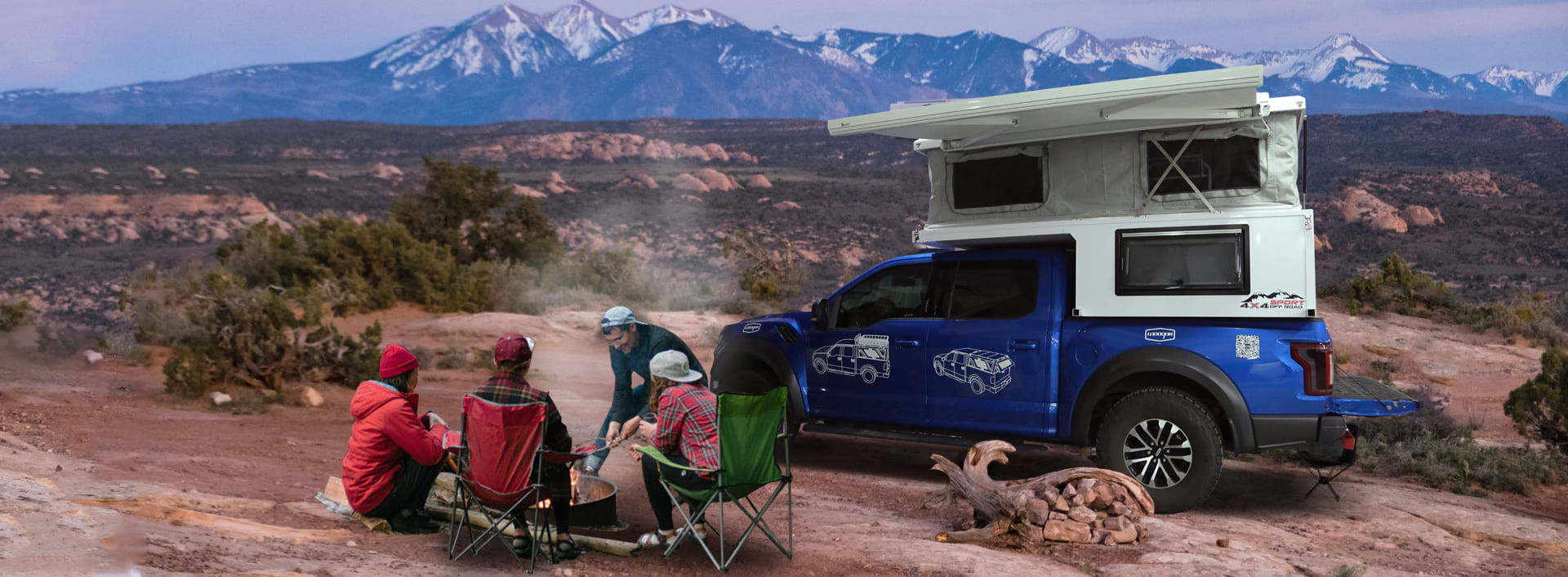

The Mini-163 pop-up truck camper is listed for three people, with a 3,040 mm body length and 600 kg tare mass. Review its raised-roof layout, then request the current specification and mounting details for your pickup.
Key Specifications
3 people (catalogue)
Floor Plan
This camper offers a practical and efficient layout with a dedicated sleeping area and a separate space for kitchen essentials, ensuring comfort and privacy. The compact design maximizes space usage, making it ideal for both short trips and extended stays.
360° Factory Tour
Take a 360° virtual tour of our state-of-the-art factory! Explore our workshops, product interiors, and showroom, and get an aerial view of the entire facility. Discover the craftsmanship behind our products and easily share or contact us for more information.
Specifications
Sleep capacity: 4 people
Double bed size: 1934 * 1355 mm
Sofa bed size: 1934 * 1080 mm
Dining area: 1200 * 1934 mm
Pneumatic lift table
Seating: 4-person black faux leather(U-shaped sofa)
Lighting: LED lights + light strips
Vehicle dimensions: 2910(L)*1934(W)*1254.4(H) mm (roof tent raises ~800mm)
Body structure: Aluminum panels + aluminum frame + XPS + wooden boards
Floor structure: Honeycomb board + PVC floor adhesive

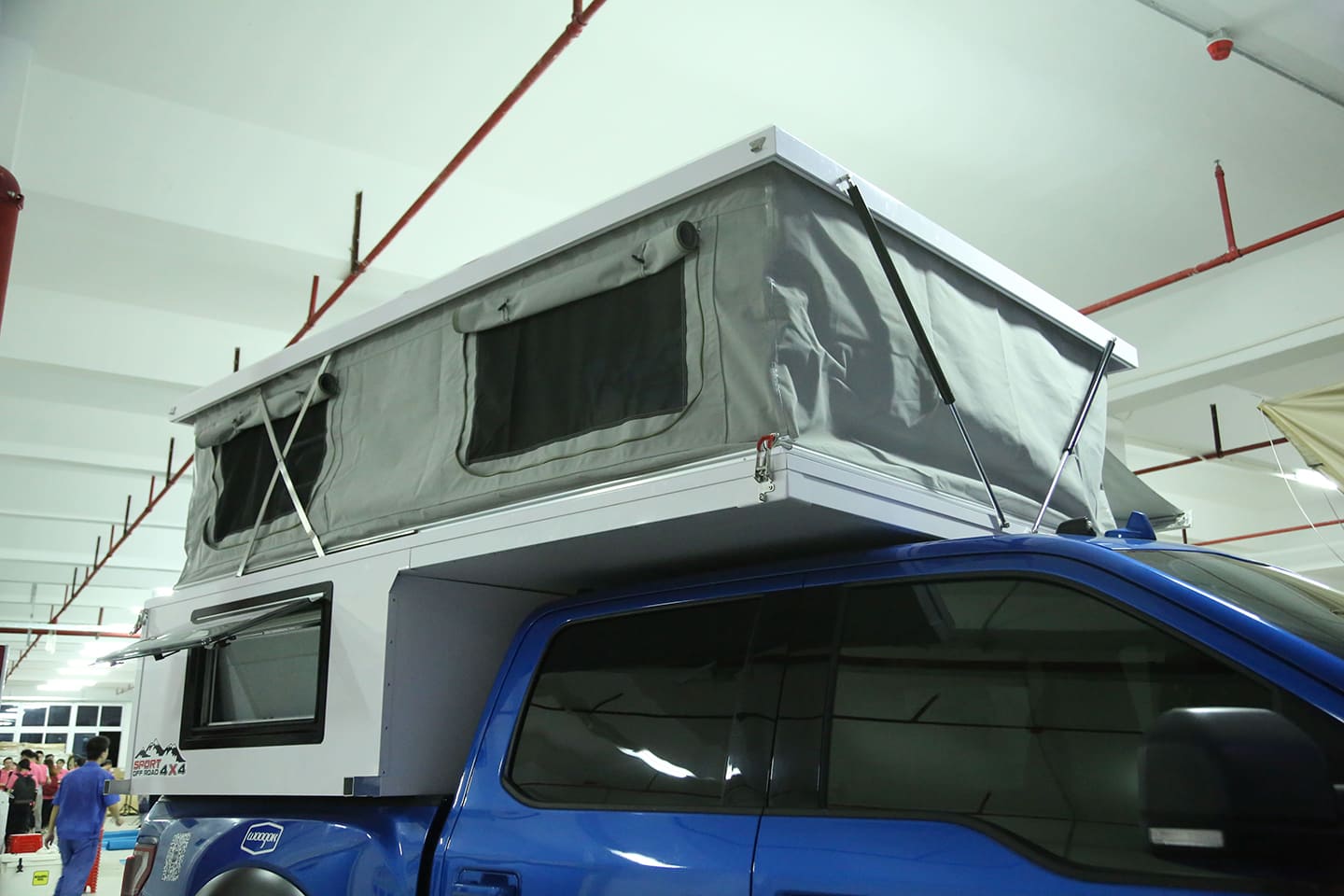

Manual lifting roof: ~800mm elevation

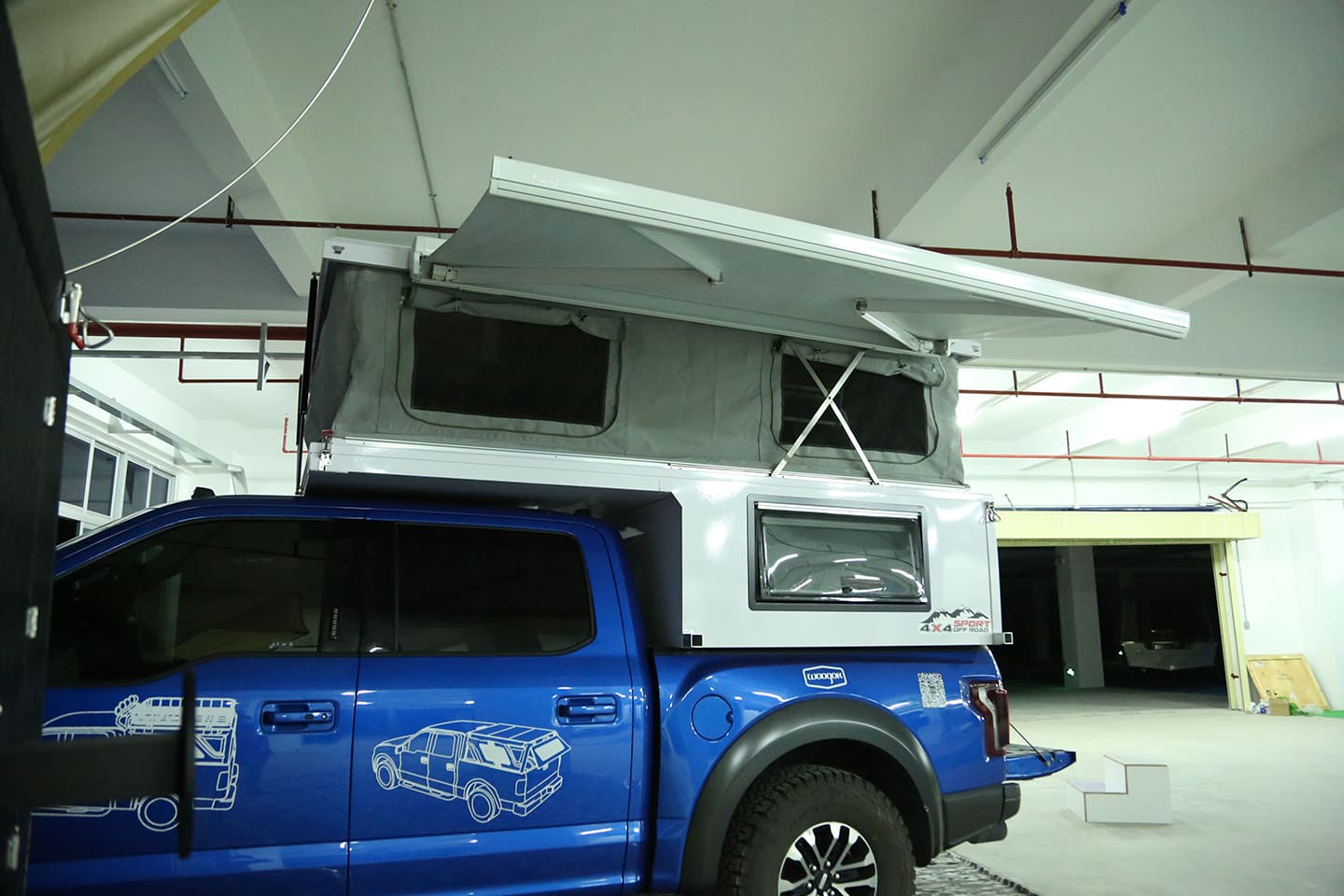

Awning: 2500(L)*2000(W) mm (manual)
Logo and exterior finish
Loading capacity: 2 units per 20ft container; 4 units per 40ft/40ft high cube container
Jack supports (manual/electric hybrid)*4 (electric drill not included)
Water supply system: 85L freshwater tank
Water pump: 12V pump, flow rate 11.3LPM
Gravity water inlet
Pressure-reducing water inlet
External shower box (hot/cold water)
Rear exterior wall light: 1
Windows: 900 * 450 mm (2 units)
Door: 700 * 1000 mm (1 unit)
Ventilation skylight (optional)
Locking buckles*4
Lithium battery: Maintenance-free, 12V 300AH
Sine wave inverter: 12V to 220V, 3000W, with charging function
Power display: Digital battery meter
Water level display: Freshwater gauge
External AC port: 220V-240V, 16A
External charging cable: 10m (optional 20m)
240V circuit breaker
12V circuit breaker (automotive-grade)
Internal 240V outlets: 2 sockets
Internal 12V outlets: 2 USB ports + 1 cigarette lighter
Bluetooth audio system
Solar panels (optional)
Helpful technical guides
Advantages
Factory Overview
Review the Ecocampor workshop as part of your supplier evaluation. Discuss the model configuration, inspection points and production plan before placing a wholesale order.
You May Also Like
Sleeping capacity
3 people
- Body length
- 3,085 mm
- Width
- 2,100 mm
- Tare mass
- 450 kg
Sleeping capacity
3 people
- Body length
- 3,910 mm
- Width
- 1,910 mm
- Tare mass
- 800 kg
Sleeping capacity
3 people
- Body length
- 3,300 mm
- Width
- 2,200 mm
- Tare mass
- 800 kg
Build your next dealer range.
Let’s discuss your product range.
Tell us which model you are sourcing and where you plan to sell it. Share your estimated quantity and requirements so our team can prepare a relevant response.
- Model specifications and equipment
- Dealer and wholesale quotations
- Branding, packing and delivery requirements
Prefer email?
tom@ecocampor.com
Frequently Asked Questions
Which dimensions should I use to compare this model?
Catalogue 0114 lists 3040 × 2160 × 1343.9 mm for Camper body only. Compare models using the same measurement basis. Confirm the final dimensional drawing, accessories and transport dimensions with Ecocampor.
How should I assess vehicle compatibility and loading?
Tare mass is not fully loaded operating weight. Confirm water, equipment, luggage, occupants where applicable, permitted mass limits, axle loads and the intended tow vehicle or truck before ordering.
Which specification and equipment will be supplied?
Use the catalogue figures for initial selection. The final quotation and approved specification define the equipment, dimensions, weight ratings and destination-market requirements for your configuration.
Can I discuss dealer, OEM or ODM cooperation?
Yes. Share your target market, preferred model and expected order plan. Dealer requirements, investment, initial orders, service capability and territory arrangements are assessed for each market. OEM and ODM projects can be discussed with Ecocampor.
