Cabover Camper-189
Model information for dealers, importers and wholesale buyers.
Model Overview

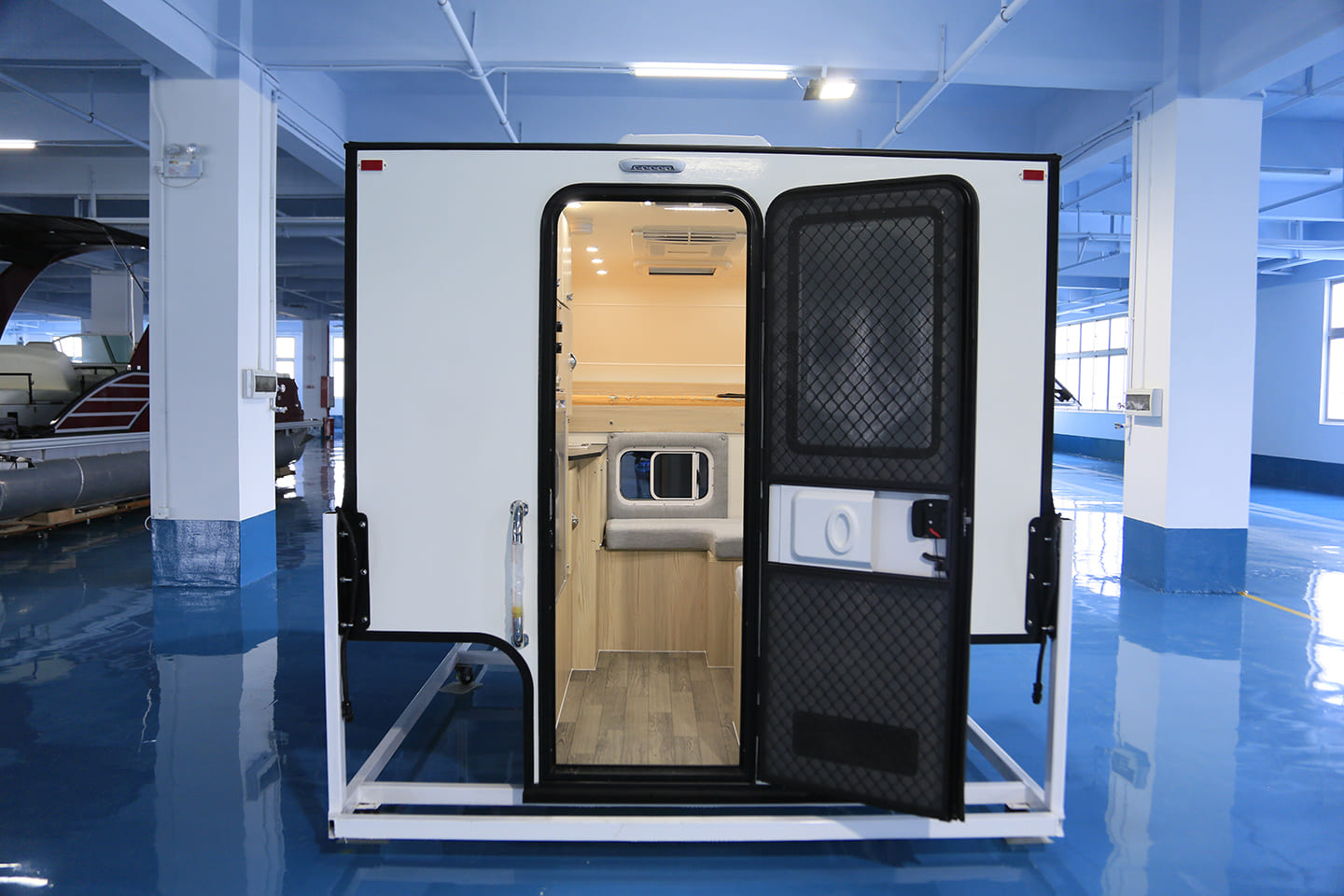

Cabover Camper-189 (Mini-189) is a hard-side truck camper for three, with a queen bed, internal kitchen and portable toilet. The catalogue lists a 3,300 × 2,200 × 2,255.5 mm body and 800 kg tare mass. Confirm equipped weight and pickup fit before ordering.
Key Specifications
3 people (catalogue)
Floor Plan

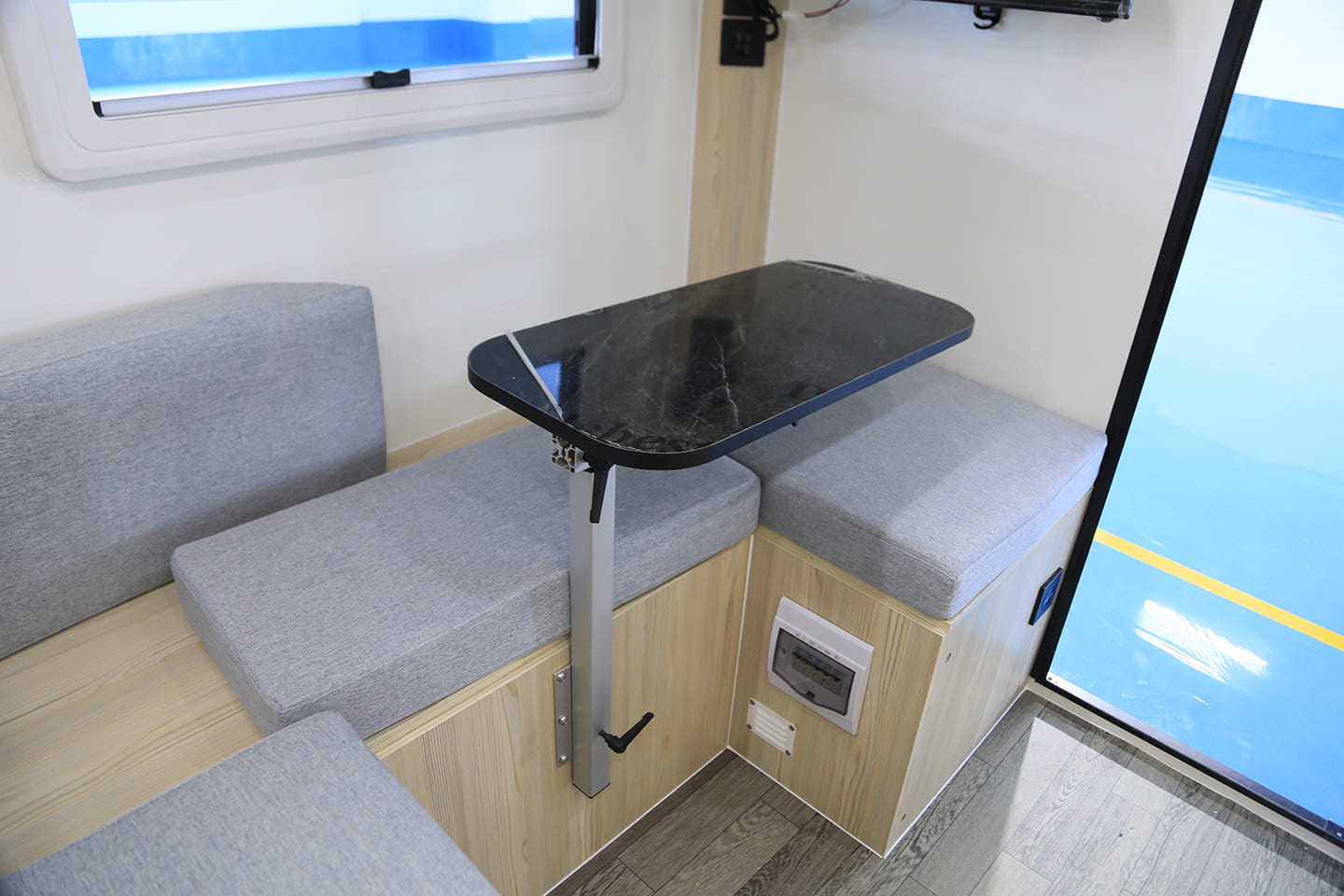

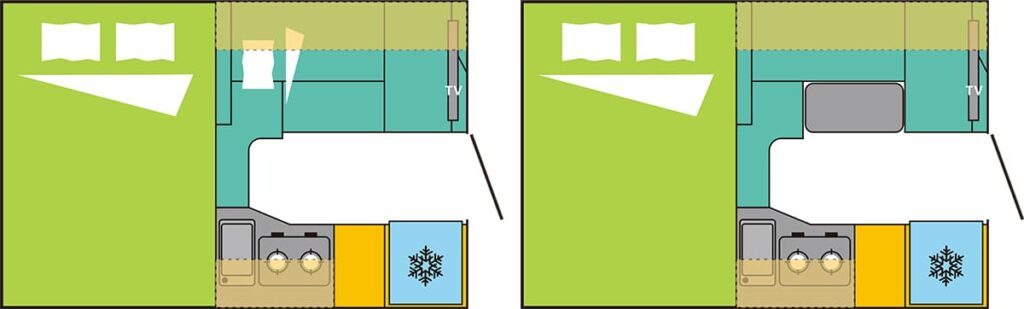

Mini-189 floor plans place a queen bed above the cab, with sofa seating and an internal kitchen in the main cabin. Compare the two illustrated layouts and confirm the supplied configuration before ordering.
360° Factory Tour
Take a 360° virtual tour of our state-of-the-art factory! Explore our workshops, product interiors, and showroom, and get an aerial view of the entire facility. Discover the craftsmanship behind our products and easily share or contact us for more information.
Specifications
Sleeping configuration:
- sleeps 3
- 1x Double Bed
- 1x Sofa Bed
Batteries:
Maintenance Free Battery
Floor:
Honeycomb Board+PVC Floor Adhesive
Lights:
LED Light
Material:
Fiberglass
Body Structure:
Fiberglass Reinforced Plastic+Aluminum Frame+XPS
MEASUREMENTS
Body size:
3300(L)*2200(W)*2255.5(H) /mm
Internal Dimensions:
3200(L)*2110(W)*1900(H)/mm
Slide bed size:
2115*1300mm
Sofa bed size:
1820*940mm
Kitchen space:
1800*1400mm
Shower:
12V electric water heater and external shower box
Sink:
Large Interior Stainless Steel Sink
Toilet:
Portable Toilet
Water Tanks
- Fresh Water:
67L stainless steel water tank - Hot Water:
Hot Water System
Fridge:

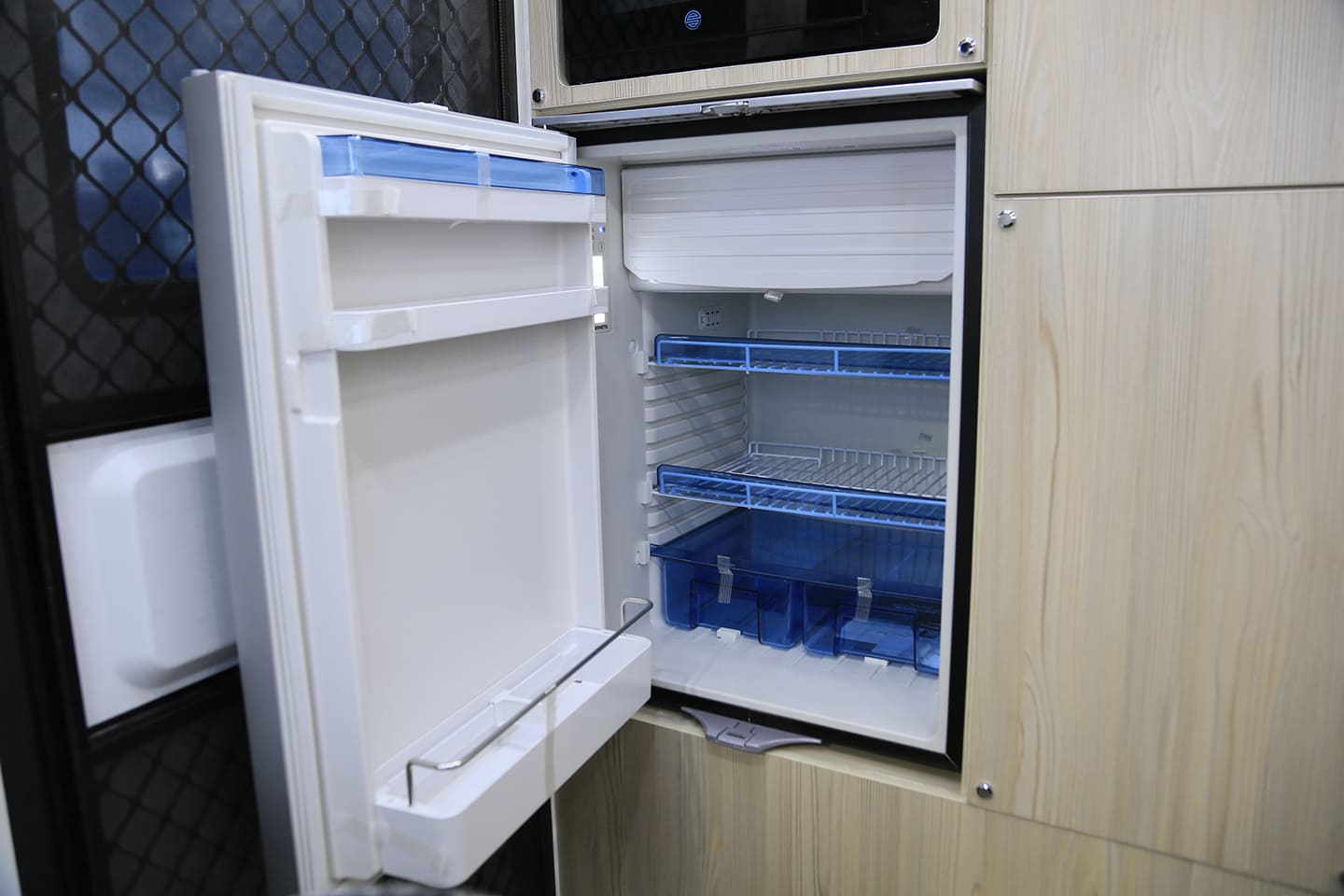

Domeida 110L DC 12V Refrigerator
Heater:

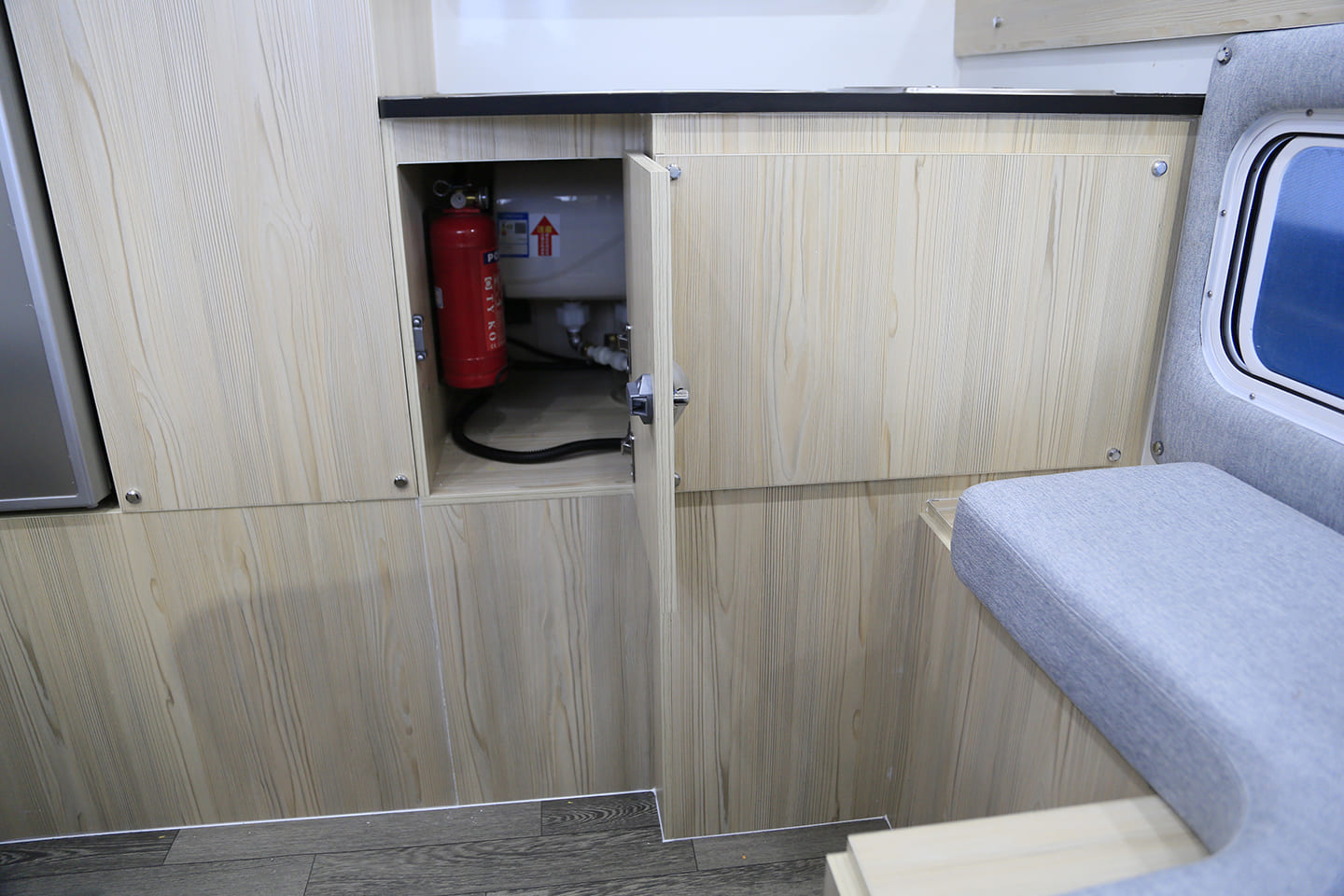

12V electric water heater
Entertainment System:

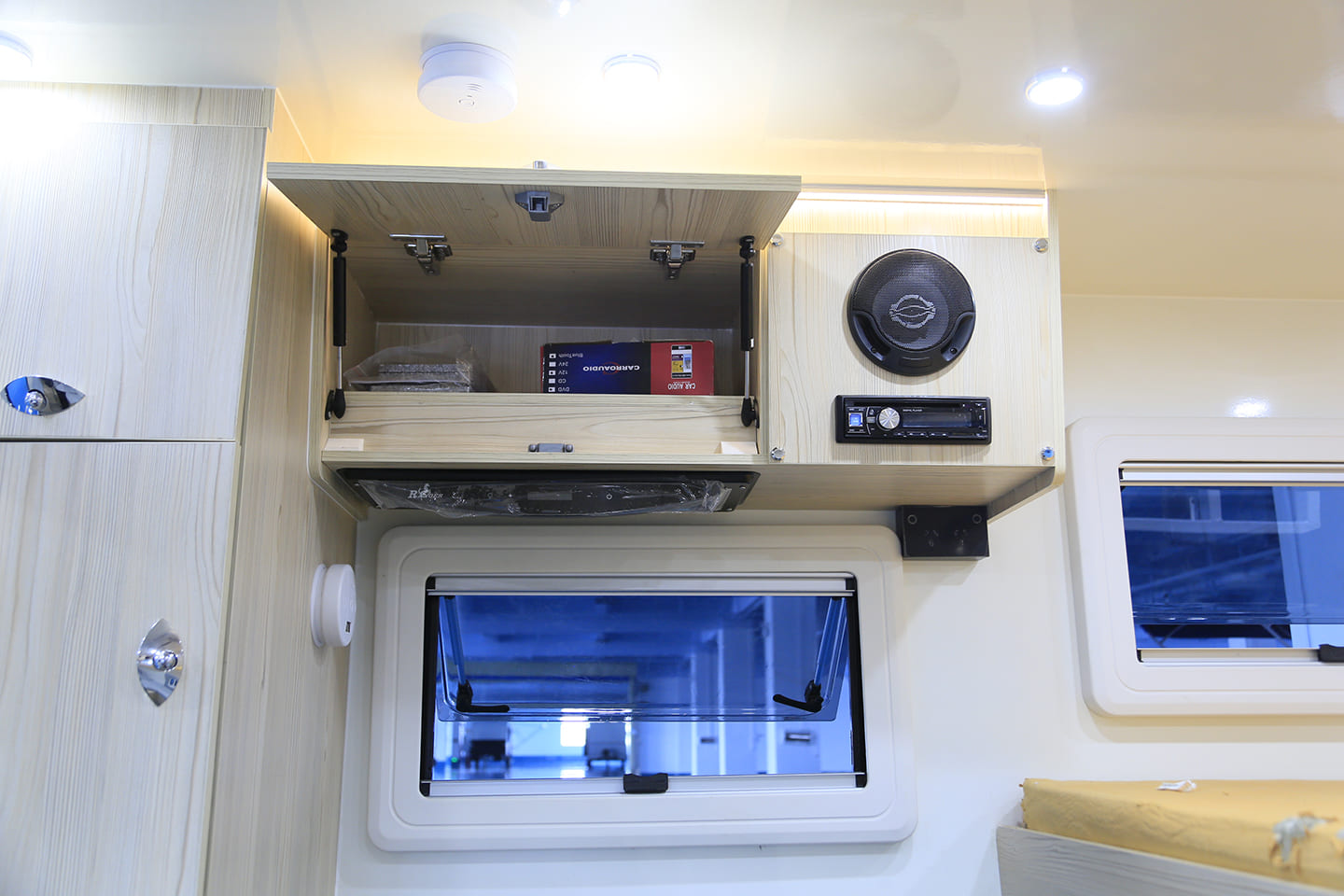

MP5 Player with stereo speaker
Safety:
Fire Extinguisher, Smoke Alarm and Propane/CO Detector

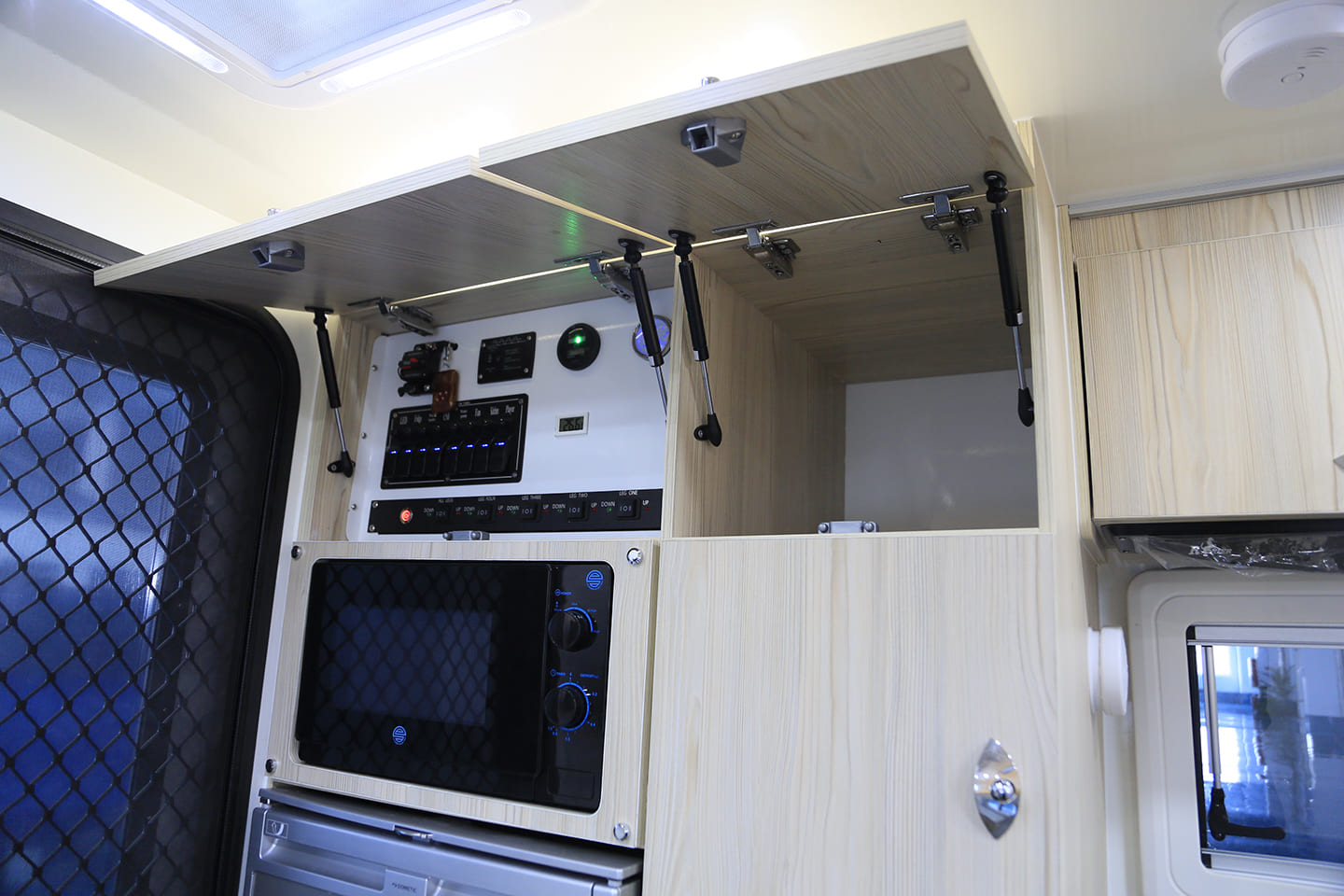

Electrical System:
12V/ 110V Electrical System
Battery:
12V150AH
Solar:
12V100W solar panel*2
Internal Lighting:
LED Reading Lights in Bedroom
External Lighting:
Wide Angle Side mounted LED Flood Lights Front & Rear LED Light Bar
